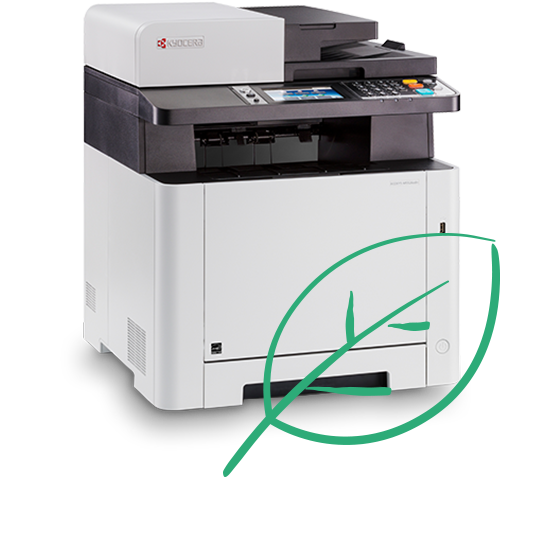

ECOSYS M5526cdn

This entry-professional top device of the ECOSYS series combines the best colour quality with the lowest running costs and it will ease workflows.

4.3 inch touch screen for easy operation.
Quick scanning with Single Pass Duplex scanning.
Exceptionally low printing costs in its class.

Engine speed

Up to 26 pages A4 per minute in colour and b/w

Resolution

1,200 x 1,200 dpi print at reduced speed, multibit technology for print quality of up to 9,600 x 600 dpi (print), 600 x 600 dpi, 256 greyscales per colour (scan/copy)

Warranty

Additional warranty on long-life parts for 3 years or 100 000 pages

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Multi-Functional Products for day-to-day tasks

Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

Multi-Functional Products for day-to-day tasks

Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.
ECOSYS: The sustainable solution

ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

ECOSYS: The sustainable solution

Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.
A3 and A4 printers for all needs

KYOCERA’s A3 and A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

A3 and A4 printers for all needs

High quality, high reliability and high efficiency are essential.

ECOSYS M5526cdn drivers
ECOSYS M5526cdn documentation
ECOSYS M5526cdn software

Main Specifications

General

General
Paper Handling
Print
Copy
Scan
Fax

General type

Colour multifunctional for A4 format

Engine speed

Up to 26 pages A4 per minute in colour and b/w

Warm-up time

Approx. 29 seconds or less

Power consumption

Cpy / Print (b/w / colour): 375 W, Ready mode: 41 W, Sleep-mode: 1 W

Warranty

2-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or maximum 100,000 pages (whichever occurs sooner), provided the printer is used and cleaned in accordance with the service instructions.

Input capacity

50-sheet multi-purpose tray; 60–220 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 148 mm–216 x 356 mm) 250-sheet universal cassette; 60–163 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (105 x 148–216 x 356 mm)

Max. input capacity with options

550 sheets

Duplex unit

Duplex as standard: Double-sided printing: 60 – 120 g/m²; A4, A5, B5, Letter, Legal

Output capacity

150 sheets face-down with paper full detection

Document processor

Dual scan document processor: 50-sheet, 50–160 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)

Processor

Coretex-A9 / 800 MHz

Fonts

93 scalable fonts for PCL/PostScript, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13, EAN128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)

Applicable OS (Print)

All current Windows operating systems, MAC OS X Version 10.5 or higher, Unix, Linux as well as other operating systems on request

Max. original size

A4/legal

Continuous copy

1 - 999

Zoom range

25 - 400 % in 1% steps

Preset magnification ratios

7 Reductions/5 Enlargements

Image adjustments

Text + Photo, Photo, Text, Map, Printed document

Digital features

Auto Colour Mode, Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, priority print, program, auto duplex copy, continuous scan, auto cassette change, copy density control

Scan functionalities

Scan-to-e-mail (SMTP), Scan-to-FTP (FTP over SSL), Scan-to-SMB, Scan to USB Host, TWAIN scan (USB, network), WSD (WIA) scan (USB, network)

Scan speed

30 ipm (300 dpi, A4, b/w, simplex), 23 ipm (300 dpi, A4, colour, simplex)

Scan features

Integrated address book, Active directory support, encrypted data transfer, Blank sheet skip

Scan resolution

600, 400, 300, 200 dpi (256 grey scales per colour)

Max. scan size

A4 / legal

File type

TIFF, PDF, PDF/A , high compression PDF, encrypted PDF, JPEG, XPS

Original recognition

Text + Photo, Photo, Text, Light Text, Text (for OCR)

Compatibility

ITU-T Super G3

Modem speed

Max. 33.6 kbps

Scanning speed

2 seconds /sheet or less

Transmission speed

3 seconds or less

Scanning density

Normal: 200 x 100 dpi, Fine: 200 x 200 dpi, Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi

Max. original size

A4 / legal

Fax features

Network fax, duplex transmission and reception, polling transmission and reception

Options and Consumables

Paper Handling Options

Paper Handling Options
Consumables
Options

TK-5240C
Average continuous cyan toner yield 3,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 1,200 pages in accordance with ISO /IEC 19798.

TK-5240K
Average continuous black toner yield 4,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous black toner yield 1,200 pages in accordance with ISO /IEC 19798.

TK-5240M
Average continuous magenta toner yield 3,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 1,200 pages in accordance with ISO /IEC 19798.

TK-5240Y
Average continuous yellow toner yield 3,000 pages in accordance with ISO /IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 1,200 pages in accordance with ISO /IEC 19798.

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

MM3-1GB
1,024 MB RAM Expansion

MM3-512MB
512 MB RAM Expansion

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

UG-33
ThinPrint support

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available
