    ECOSYS M2635dn

    The M2635dn is one the most affordable models in our ECOSYS series, yet is still full of features for demanding desktop users and small work groups.

    • Double-sided print.
    • Single-sided copy, colour scan and fax.
    • Copy double-sided ID cards on a single sheet of paper with ease.
    • Compact design with low-noise printing.
    • AirPrint, Mopria, KYOCERA Mobile Print.
    • Copy double-sided ID cards on a single sheet of paper with ease
    • Compact design with low-noise printing
    Buy now Buy now
    Engine speed
    Engine speed

    Up to 35 pages A4 per minute

    Resolution
    Resolution

    300 dpi, 600 dpi, 1,200 dpi

    Dimensions (W x D x H)
    Dimensions (W x D x H)

    Main unit: 417 x 412 x 437 mm

    Warranty
    Warranty

    Additional warranty on long-life parts for 3 years or 100 000 pages

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • ECOSYS M2635dn drivers
    • ECOSYS M2635dn documentation
    • ECOSYS M2635dn software

    Main Specifications

    General
    • General
    • Paper Handling
    • Print
    • Copy
    • Scan
    • Fax

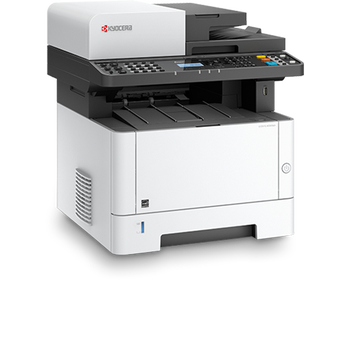

    mfp-540x540-angled-ecosysM2635dn
    General type
    Black and white Multifunctional for A4 format
    Engine speed
    Up to 35 pages A4 per minute
    Warm-up time
    Approx. 17 seconds or less
    Power consumption
    Copying/Printing: 661 W, Ready-mode: 21 W, Sleep-mode: 1 W,
    Warranty
    2-year warranty (depending on the country) as standard. KYOCERA guarantees the drum and developer for 3 years or 100,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
    Input capacity
    100-sheet multi-purpose tray; 60 – 220 g/m²;A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 148 mm – 216 x 356 mm) 250-sheet universal cassette; 60 – 163 g/m²; A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 – 216 x 356 mm).
    Max. input capacity with options
    850 sheets
    Duplex unit
    Duplex functionality as standard: Double-sided printing: 60 – 163 g/m²; A4, A5, B5, Letter, Legal
    Max. output capacity
    Max. 150 sheet face down with paper full detection
    Document processor
    Document processor: 50-sheet, 50 – 160 g/m², A4, A5, A6, B5, B6, Letter, Legal, Custom (100 x 148 to 216 x 356 mm)
    Processor
    800 MHz
    Fonts
    93 scalable fonts for PCL6/KPDL3, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)
    Applicable OS
    All current Windows operating systems, MAC OS X Version 10.5 or higher, Unix, Linux as well as other operating systems on request
    Max. original size
    A4(Platen)/Legal(DP)
    Continuous copy
    1 - 999 (when optional memory installed)
    Zoom range
    25 - 400 % in 1% steps
    Preset magnification ratios
    7 Reductions/5 Enlargements
    Image adjustments
    Text + photo, text, photo
    Digital copy features
    Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, priority print, program, continuous scan, auto cassette change, copy density control
    Scan functionalities
    Scan-to-e-mail (SMTP), Scan-to-FTP (FTP over SSL), Scan-to-SMBv3, Scan to USB Host, TWAIN scan (USB, network), WSD (WIA) scan (USB, network)
    Scan speed
    40 ipm (300 dpi, A4, b/w); 23 ipm (300 dpi, A4, colour)
    Scan features
    Integrated address book, LDAP, encrypted data transfer, Blank sheet skip
    Scan resolution
    300dpi x 300dpi, 200dpi x 200dpi(Default) , 200dpi x 100dpi , 600dpi x 600dpi , 400dpi x 400dpi , 200dpi x 400dpi
    Max. scan size
    A4(Platen), Legal(DP)
    File type
    TIFF, PDF, PDF/A-1 , high compression PDF, encrypted PDF, JPEG, XPS
    Original recognition
    Text + Photo, Photo, Text, Light Text/Fine Line, Text (for OCR)
    Compatibility
    ITU-T Super G3
    Modem speed
    Max. 33.6 kbps
    Scanning speed
    2 seconds /sheet or less
    Transmission speed
    3 seconds or less
    Scanning density
    Normal: 200 x 100 dpi, Fine: 200 x 200 dpi, Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi
    Max. original size
    A4 / Legal
    Fax features
    Network fax, duplex transmission and reception, polling transmission and reception

    Options and Consumables

    Paper Handling Options
    • Paper Handling Options
    • Consumables
    • Options

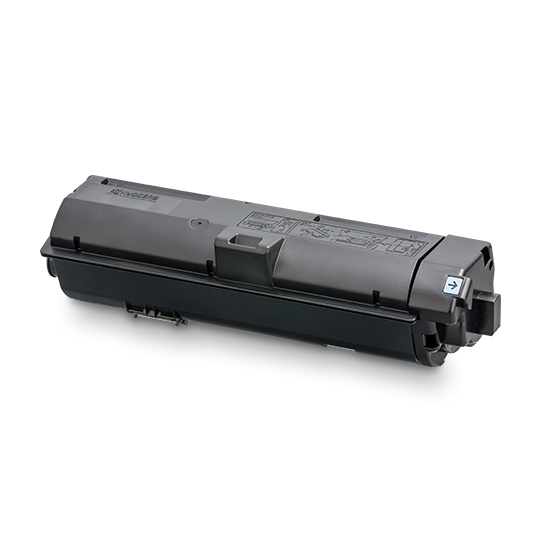

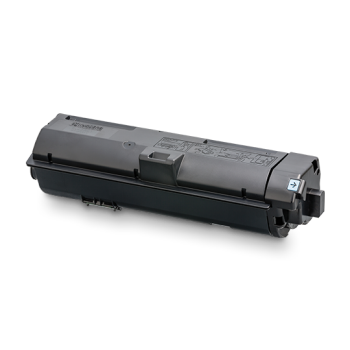

    TK-1150
    Microfine toner for 3,000 pages A4 in accordance with ISO/IEC 19752. Capacity of starter toner is 1,000 pages A4

    KYOmulticode SD 3
    Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

    MD3-1024
    1,024 MB RAM Expansion

    PCL Barcode SD
    Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

    UG-33
    ThinPrint support

    USB IC Card Reader + Card Authentication Kit (B)
    Support for various authentication keys available

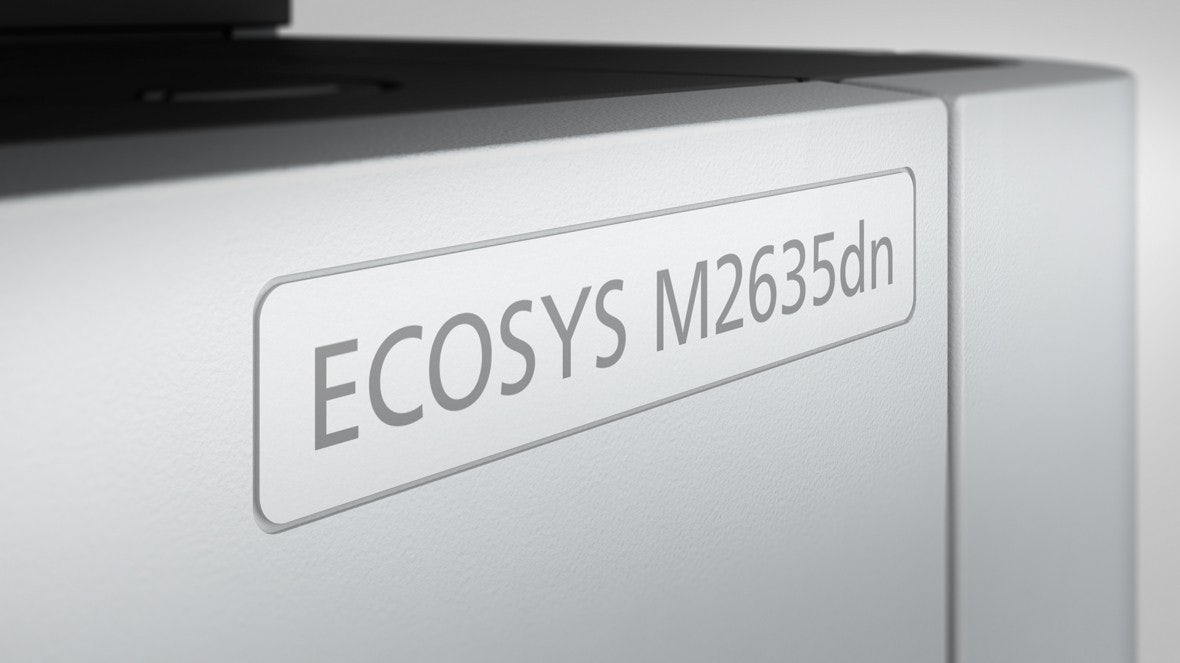

    • imagegallery-1180x663-ECOSYS-M2635dn-detail

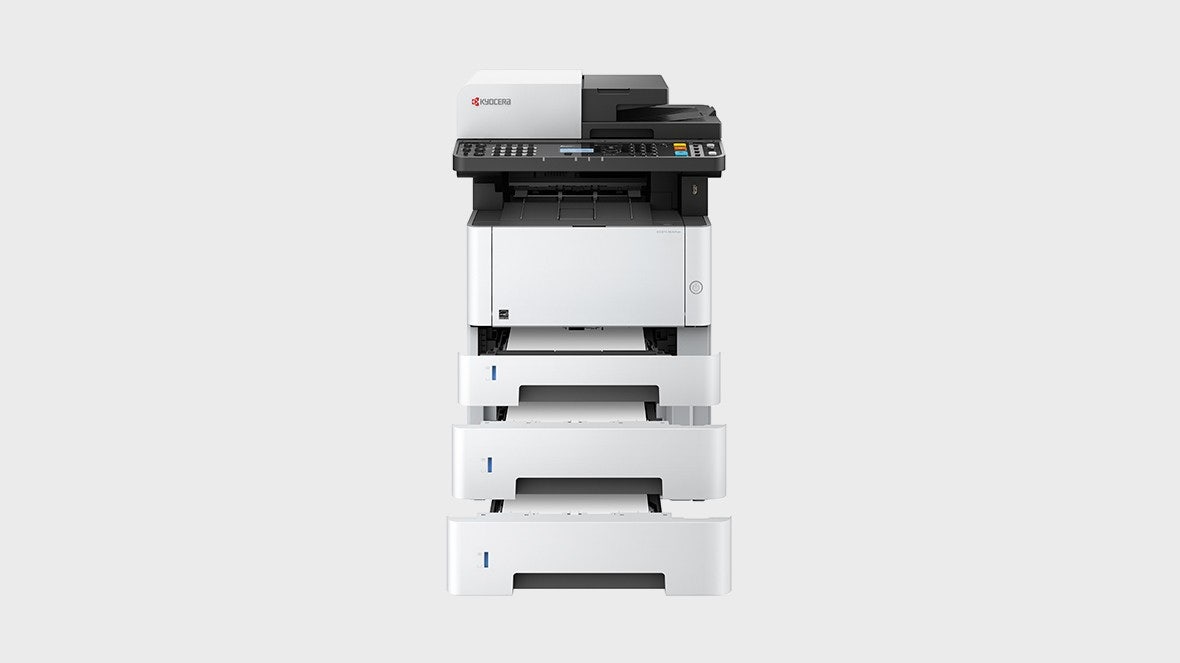

    • imagegallery-1180x663-ECOSYS-M2635dn-front-open

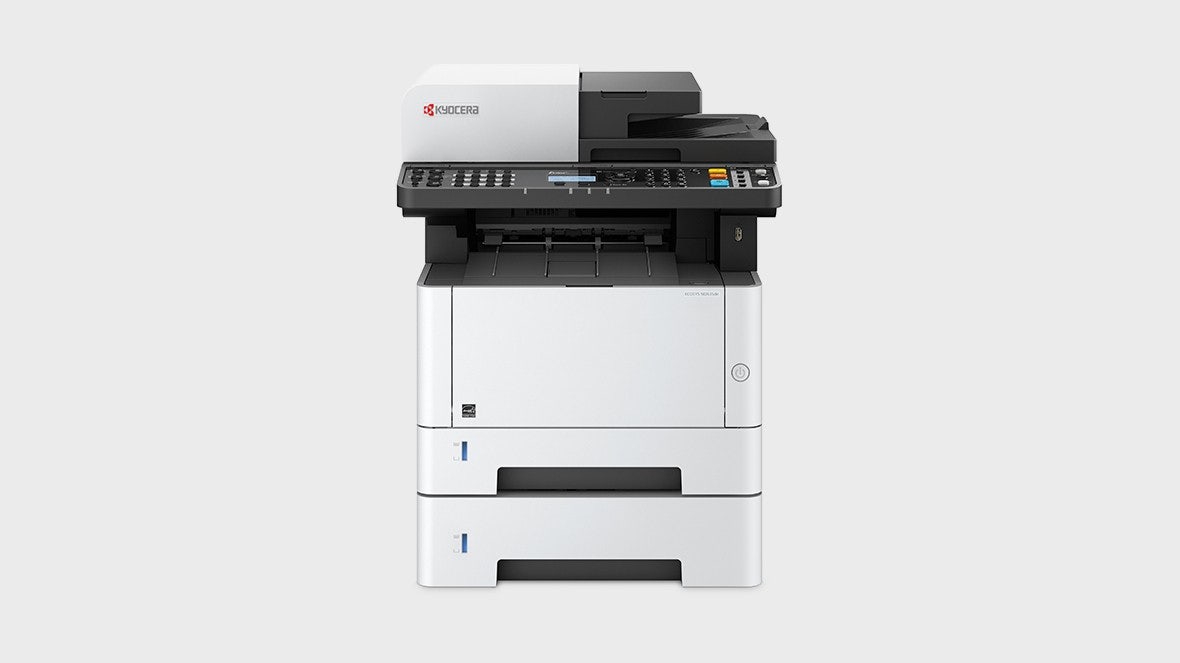

    • imagegallery-1180x663-ECOSYS-M2635dn-front

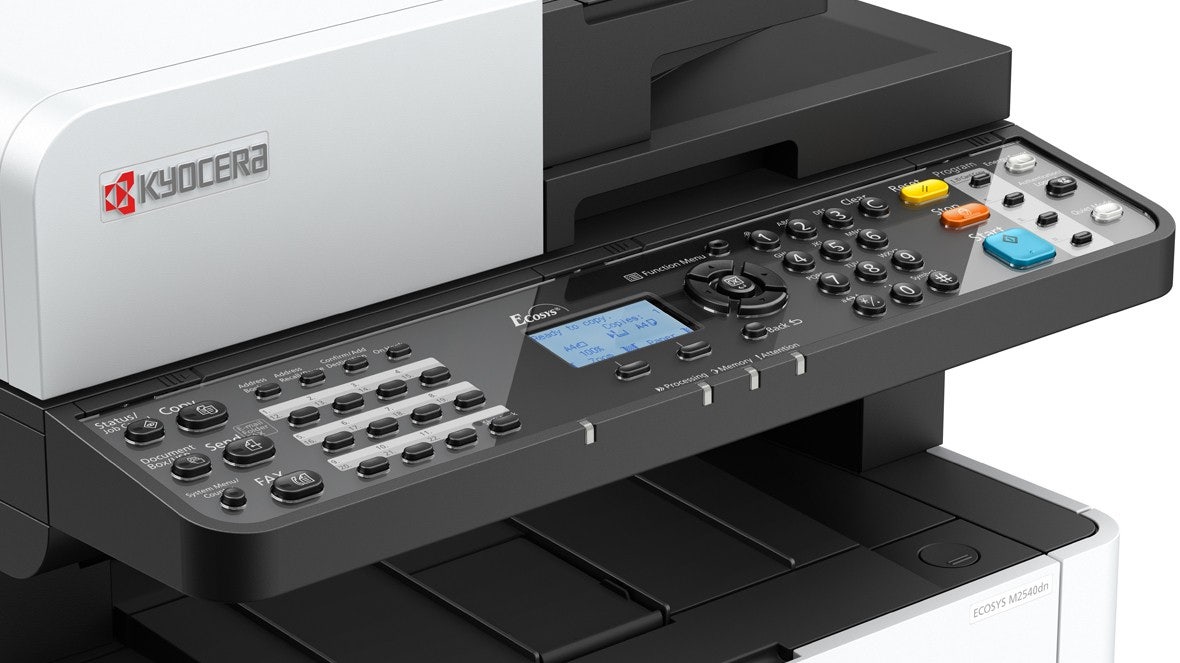

    • imagegallery-1180x663-ECOSYS-M2635dn-panel

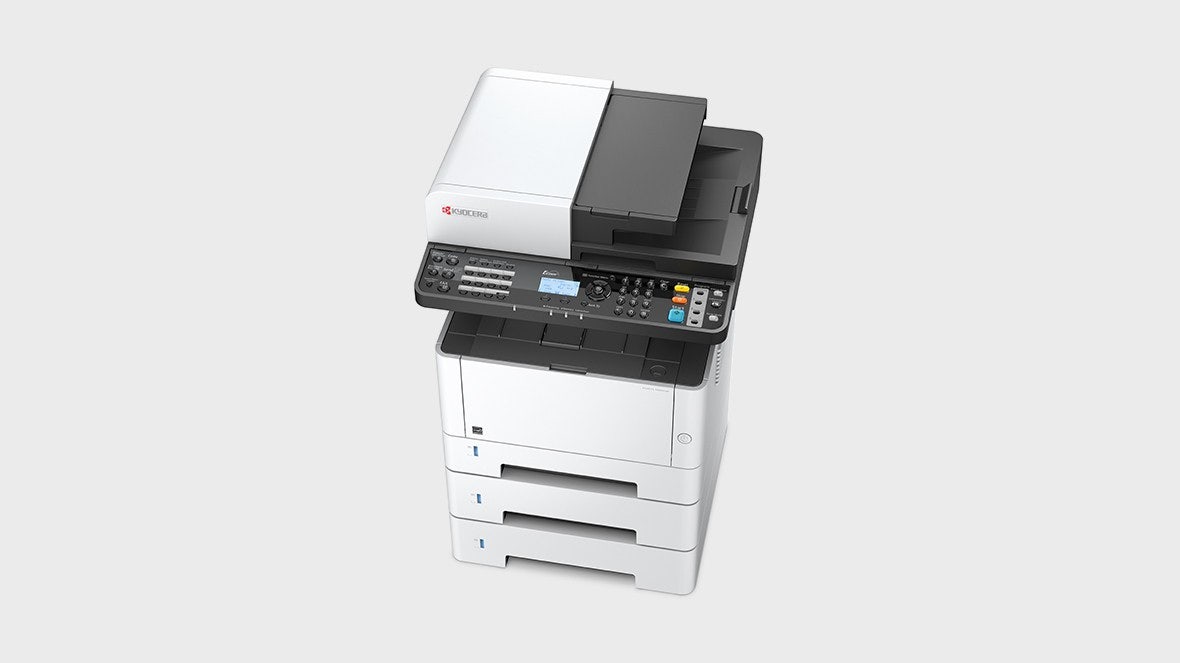

    • imagegallery-1180x663-ECOSYS-M2635dn-top
