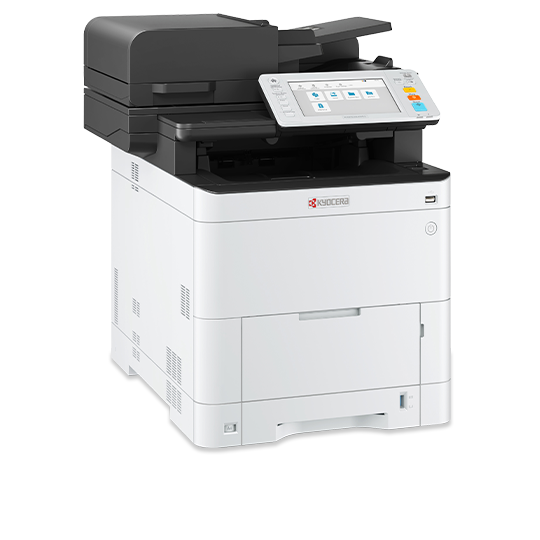

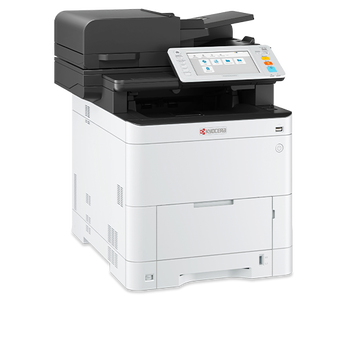

ECOSYS MA4000cix

multi-functional device

  • Double-sided print, copy and scan.

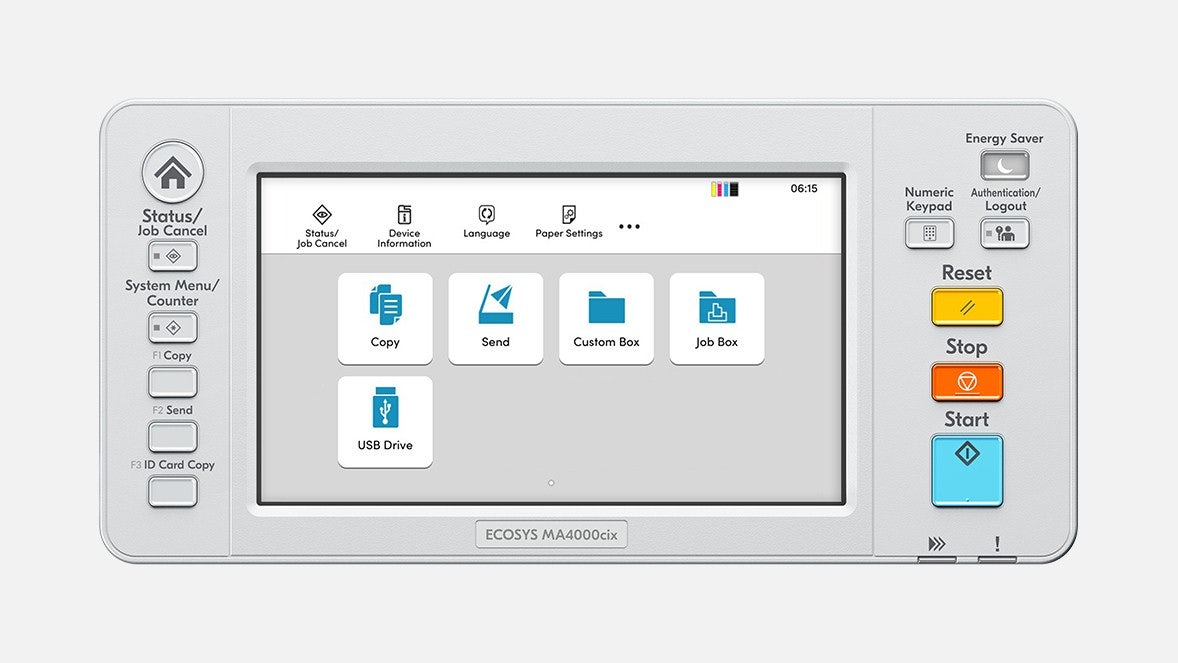

  • 7-inch full-colour touch panel provides ease of use.
  • HyPAS™ solution platform enables powerful customisations.
  • Quick scanning with Single Pass Duplex scanning.
Engine speed
Engine speed

Up to 40 pages A4 per minute in colour and black and white

Resolution
Resolution

1200 x 1200 dpi (print, at reduced speed) 600 x 600 dpi (scan/copy)

Dimensions (W x D x H)
Dimensions (W x D x H)

480 × 577.5 × 571.5 mm

Warranty
Warranty

-year warranty as standard. KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • ECOSYS MA4000cix drivers
  • ECOSYS MA4000cix documentation
  • ECOSYS MA4000cix software

Main Specifications

General
  • General
  • Paper handling
  • Print
  • Copy
  • Scan
square-540x540-MA4000cix
General type
Colour multifunctional for A4 format
Engine speed
Up to 40 pages A4 per minute in colour and black and white
Warm-up time
Approx. 26 seconds or less
Power consumption
Printing: 573.6 W Copying: 575.0 W Ready mode: 84 W Sleep-mode: 0.5 W
Warranty
-year warranty as standard. KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
Input capacity
100-sheet multi-purpose tray, 60–220g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 260-sheet Standard universal paper cassette, 60–220 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 – 216 x 356 mm).
Max. input capacity with options
2,210 sheets
Duplex unit
Duplex as standard supports 60–163 g/m2, A4, A5, B5, Letter, Legal
Max. output capacity
Max. 250 sheets face-down with paper full sensor
Document processor
Dual scan document processor: standard 100 sheets 50 - 120 g/m2 A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)
Processor
Cortex-A9 Dual core 1,2 GHz
Fonts
93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts (Windows Vista), 1 Bitmap font, 45 types of onedimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality
Applicable OS
All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request
Max. original size
A4/legal
Continuous copy
1 - 999
Zoom range
25 - 400 % in 1% steps
Preset magnification ratios
7 Reductions/5 Enlargements
Image adjustments
Text + Photo, Photo, Text, Map, Printed document
Digital copy features
Scan-once-copy-many, electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page
Scan functionalities
Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN, WIA, WSD scan
Scan speed
120 ipm (300 dpi, A4, b/w), 100 ipm (300 dpi, A4 colour), 60 ipm (300 dpi, A4, b/w), 50 ipm (300 dpi, A4 colour)
Scan features
Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
Scan resolution
200 dpi, 300 dpi, 400 dpi, 600 dpi (256 greyscales per colour)
Max. scan size
A4/legal
File type
TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required)
Original recognition
Text, photo, text + photo, light text, optimised for OCR

Options and Consumables

Options
  • Options

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

MD3-1024
1,024 MB RAM Expansion

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

Scan extension Kit (A) AC
Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HDD, SSD or SD-card is needed.

UG-33
ThinPrint support

UG-35
TPM (Trusted Platform Module)

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available
