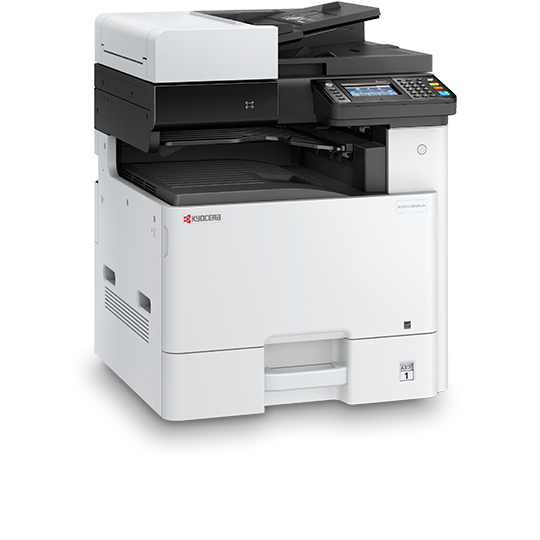

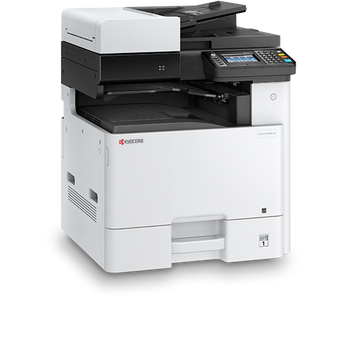

    mfp-540x540-angled-ecosysM8124cidn

    ECOSYS M8124cidn

    This compact, A4/A3 format colour multifunctional, specifically designed to meet the requirements of small offices and workgroups, will satisfy even the most demanding environment. Engineered with KYOCERA ’s renowned longlife components, this ECOSYS device ensures unprecedented reliability and exceptionally low printing costs with significantly less environmental impact.

    • Minimum installation and operation requirements.
    • Simple and wizard operations.
    • Long-life components provide exceptional reliability.
    • HyPAS solution platform enables powerful customisations.
    Engine speed

    Up to 24/12 pages A4/A3 per minute in colour and b/w

    Resolution

    1200 x 1200 dpi (print) 600 x 600 dpi (scan/copy)

    Warranty

    Additional warranty on long-life parts for 3 years or 200 000 pages

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • man reclining in his chair with hands behind his head

      Multi-Functional Products for day-to-day tasks

      Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

      Multi-Functional Products for day-to-day tasks
      Multi-Functional Products for day-to-day tasks

      Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

    • hands holding a plant in soil

      ECOSYS: The sustainable solution

      ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

      ECOSYS: The sustainable solution
      ECOSYS: The sustainable solution

      Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

    • woman smiling while reading a document

      A3 and A4 printers for all needs

      KYOCERA’s A3 and A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

      A3 and A4 printers for all needs
      A3 and A4 printers for all needs

      High quality, high reliability and high efficiency are essential.

    • ECOSYS M8124cidn drivers
    • ECOSYS M8124cidn documentation
    • ECOSYS M8124cidn software

    Main Specifications

    General

    • General
    • Paper Handling
    • Print
    • Copy
    • Scan
    • Fax
    mfp-540x540-angled-ecosysM8124cidn
    General type
    Colour Multifunctional for A4/A3 Format
    Engine speed
    Up to 24/12 pages A4/A3 per minute in colour and b/w
    Warm-up time
    Approx. 30 seconds or less
    Power consumption
    Sleep-mode: 0.5 W, Stand-by: 70 W, Copying/Printing: 550 W
    Warranty
    2-year warranty as standard. KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
    Input capacity
    100-sheet multi-purpose tray, 60–256 g/m²: A3, A4, A5, A6, B5, Ledger, Letter, Legal, Folio, Custom (98 x 148 to 297 x 432 mm) 500-sheet standard universal paper cassette, 60–256 g/m², A3, A4, A5, B5, Ledger, Letter, Legal, Folio
    Max. input capacity with options
    1,600 sheets
    Duplex unit
    Standard duplex unit: 60–256 g/m²
    Output capacity
    Max. 280 sheets; 250 sheets face-down (Main Tray), plus 30 sheets (standard Job Separator Tray)
    Document processor
    Standard reversing document processor: 50-sheet, Simplex scan 45–160 g/m², Duplex scan 50–120 g/m², A3, A4, A5, B5, Letter, Legal, Custom (140x182 to 297x432mm)
    Processor
    ARM Cortex-A9 Dual core1.2 GHz
    Fonts
    101 outline fonts (PCL 6, KPDL3, Windows Vista), 1 bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode PDF417 under PRESCRIBE (PCL and other barcodes available as options)
    Features
    Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality
    Applicable OS (Print)
    All current Windows operating systems, Mac OS X Version 10.5 or higher, UNIX LINUX , as well as other operating systems on request.
    Max. original size
    A3/Ledger
    Continuous copy
    1 - 999
    Zoom range
    25 - 400 % in 1% steps
    Preset magnification ratios
    5 Reductions / 5 Enlargements
    Image adjustments
    Text, photo, text + photo, Map, Printed document
    Digital features
    Scan-once-copy-many, sort, 2in1, 4in1, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change (PF-470 or PF-471 is required), copy density control, Prevent Bleed-Through, ID card copy, Skip blank page
    Scan functionalities
    Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan-to-USB Host, Network TWAIN, WIA, WSD scan
    Scan speed
    b/w: 50 ipm (300 dpi, A4), Colour: 50 ipm (300 dpi, A4)
    Scan features
    Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
    Scan resolution
    200, 300, 400, 600 dpi (256 greyscales per colour)
    Max. scan size
    A3/Ledger
    File type
    PDF, PDF/A, JPG, TIFF, XPS, PDF/A-1a/b, PDF/A-2a/b/u, Encrypted PDF High Compresson PDF
    Original recognition
    Text, photo, text + photo, light text, optimised for OCR
    Compatibility
    ITU-T Super G3
    Modem speed
    Max. 33.6 kbps
    Scanning speed
    2.0 second or less
    Transmission speed
    Max. 33.6 kbps
    Scanning density
    Normal: 8 dot/mm x 3.85 line/mm, Fine: 8 dot/mm x 7.7 line/mm, Superfine: 8 dot/mm x 15.4 line/mm, Ultrafine: 16 dot/mm x 15.4 line/mm, Halftone: 256 gray scales
    Max. original size
    A3/Ledger
    Fax features
    Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

    Options and Consumables

    Consumables

    • Consumables
    • Options

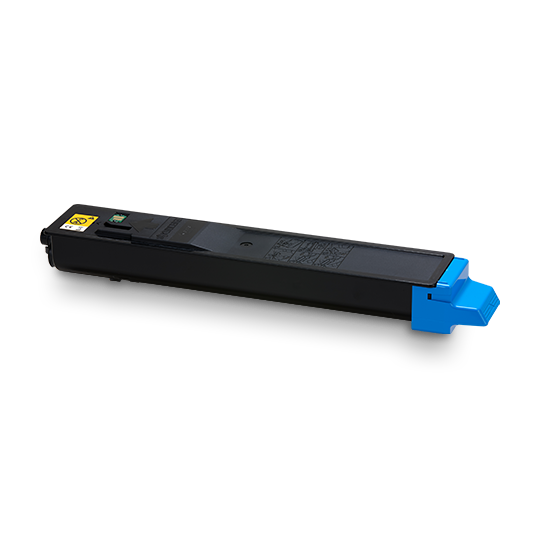

    TK-8115C
    Microfine toner cyan for 6,000 A4. Capacity of starter toner is cyan 1,500 pages. Average continuous toner yield in accordance with ISO/IEC 19798.

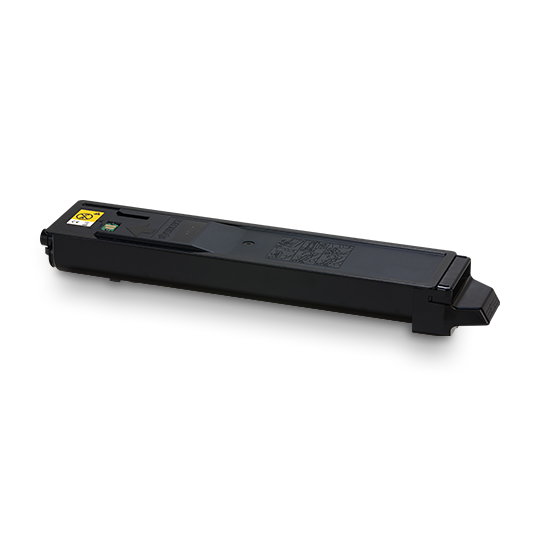

    TK-8115K
    Microfine toner black for 12,000 pages A4. Capacity of starter toner is black 3,000 pages, Average continuous toner yield in accordance with ISO/IEC 19798.

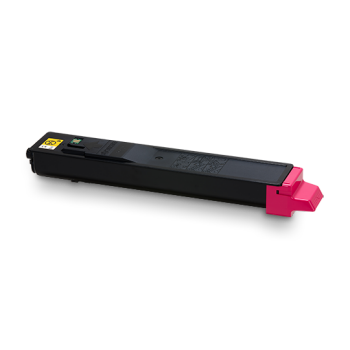

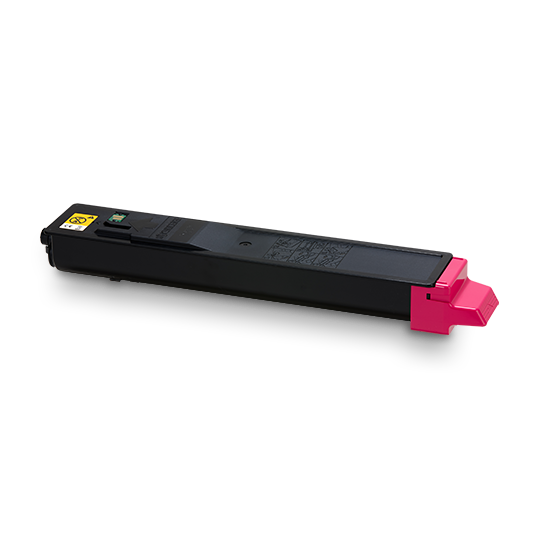

    TK-8115M
    Microfine toner magenta for 6,000 A4 pages. Capacity of starter toner is magenta 1,500 pages. Average continuous toner yield in accordance with ISO/IEC 19798.

    TK-8115Y
    Microfine toner yellow for 6,000 pages in accordance with ISO/IEC 19798. Capacity of starter toner is yellow 1,500 pages in accordance with ISO/IEC 19798. Average continuous toner yield in accordance with ISO/IEC 19798.

    CB-470
    Wooden cabinet

    CB-472
    Metal cabinet

    Card Authentication Kit (B)
    Support for various authentication keys available

    Data Security Kit (E) AC
    In line with ISO 15408 (Common Criteria). Only 4in1 MFP-models carry official CC-Certification.

    Fax System 13
    Super G3 Fax, network fax

    HD-6
    32 GB for easy document management

    HD-7
    128 GB SSD hard disc for easy document management

    IB-36
    Wireless LAN (802.11b/g/n) with Wi-Fi Direct

    IB-50
    Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

    IB-51
    Wireless LAN Interface (802.11b/g/n)

    KYOmulticode SD 3
    Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

    MD3-1024
    1,024 MB RAM Expansion

    MDDR3-2GB
    2,048 MB RAM Expansion

    PCL Barcode SD
    Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

    Scan extension Kit (A) AC
    Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HDD, SSD or SD-card is needed.

    UG-33
    ThinPrint support

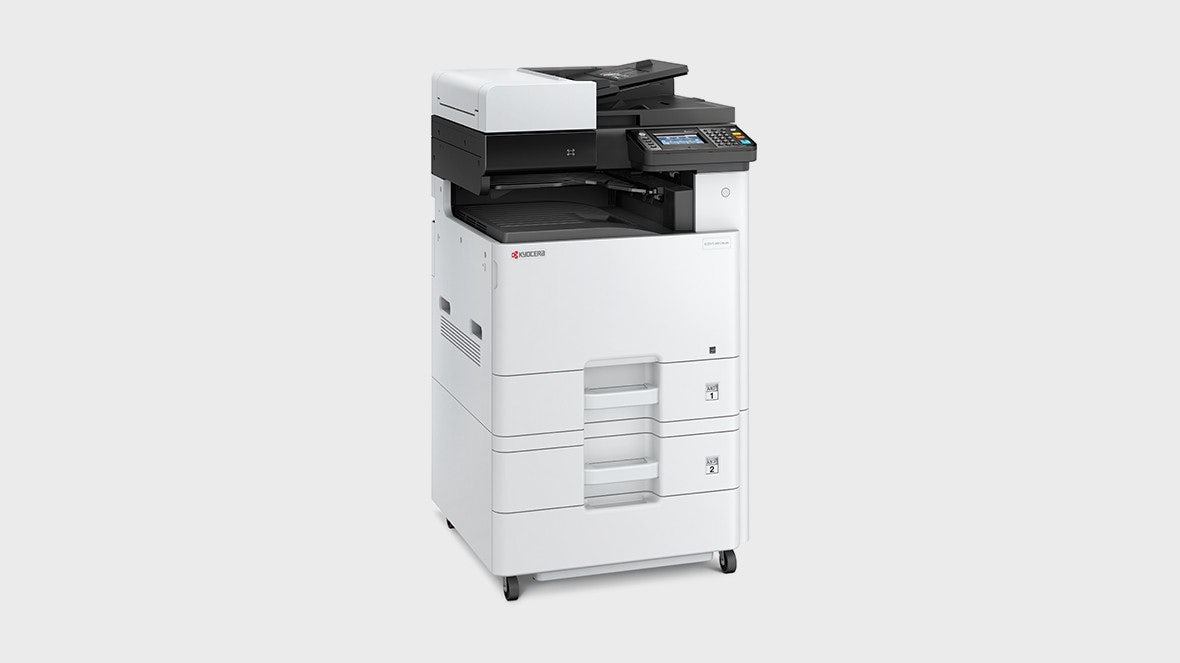

    • imagegallery-1180x663-ECOSYS-M8124cidn-angle

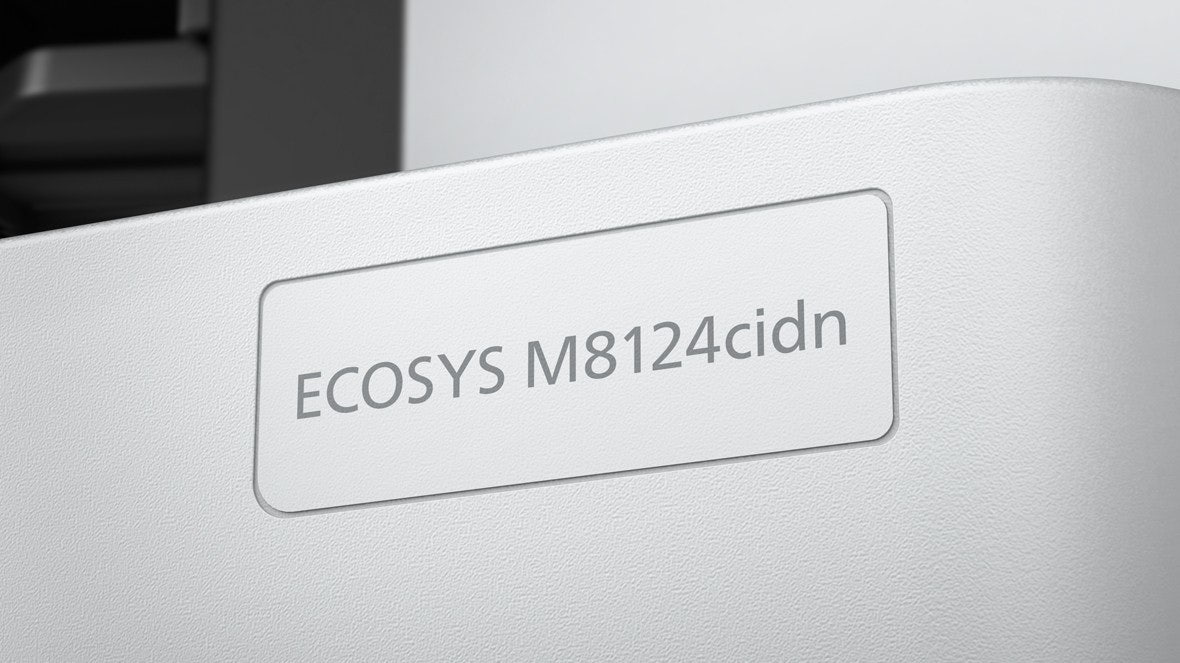

    • imagegallery-1180x663-ECOSYS-M8124cidn-detail

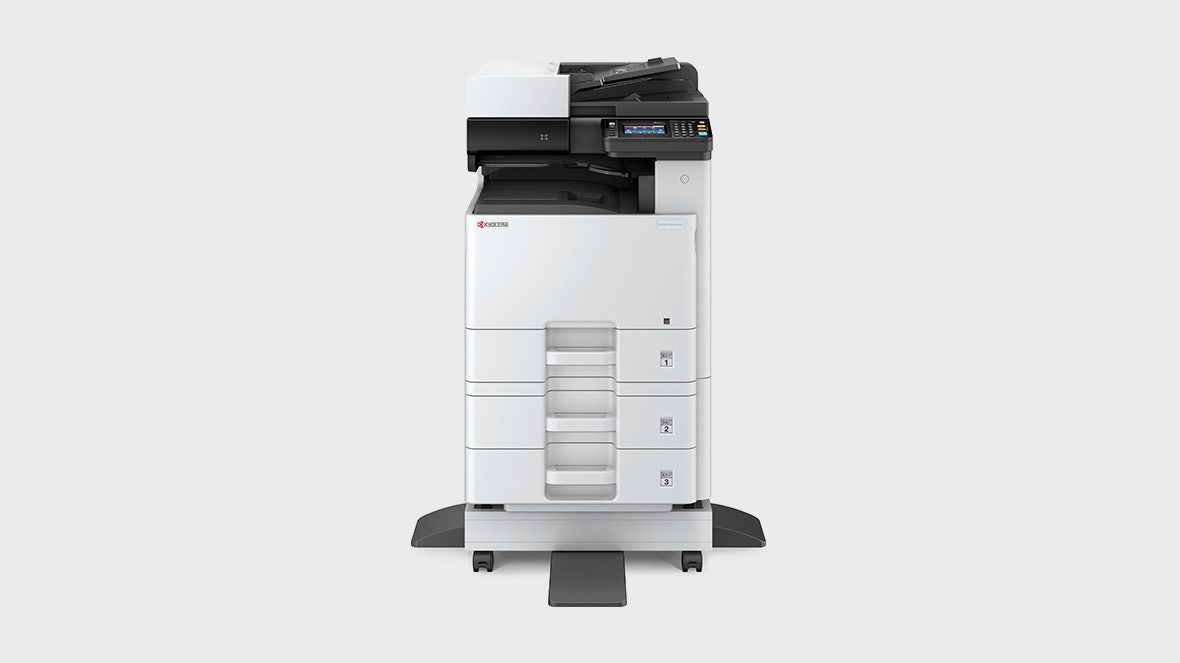

    • imagegallery-1180x663-ECOSYS-M8124cidn-front

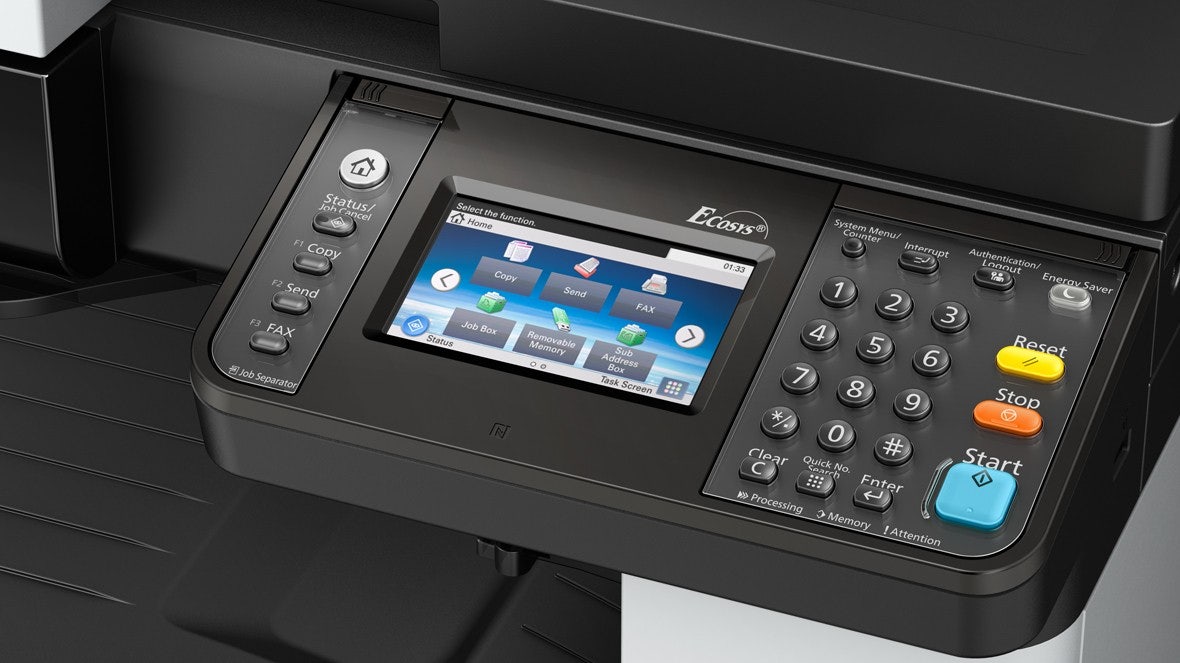

    • imagegallery-1180x663-ECOSYS-M8124cidn-panel
