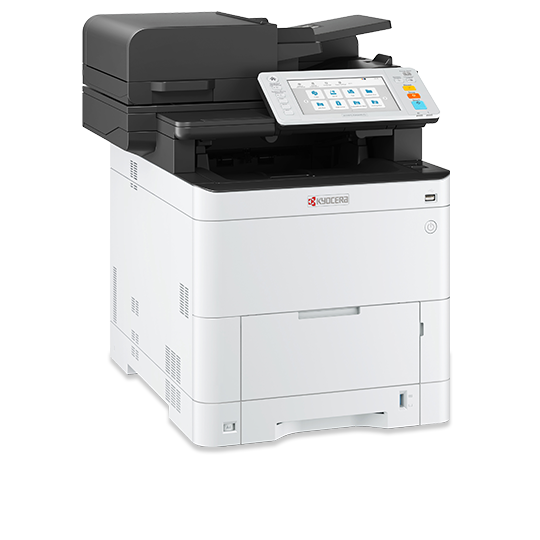

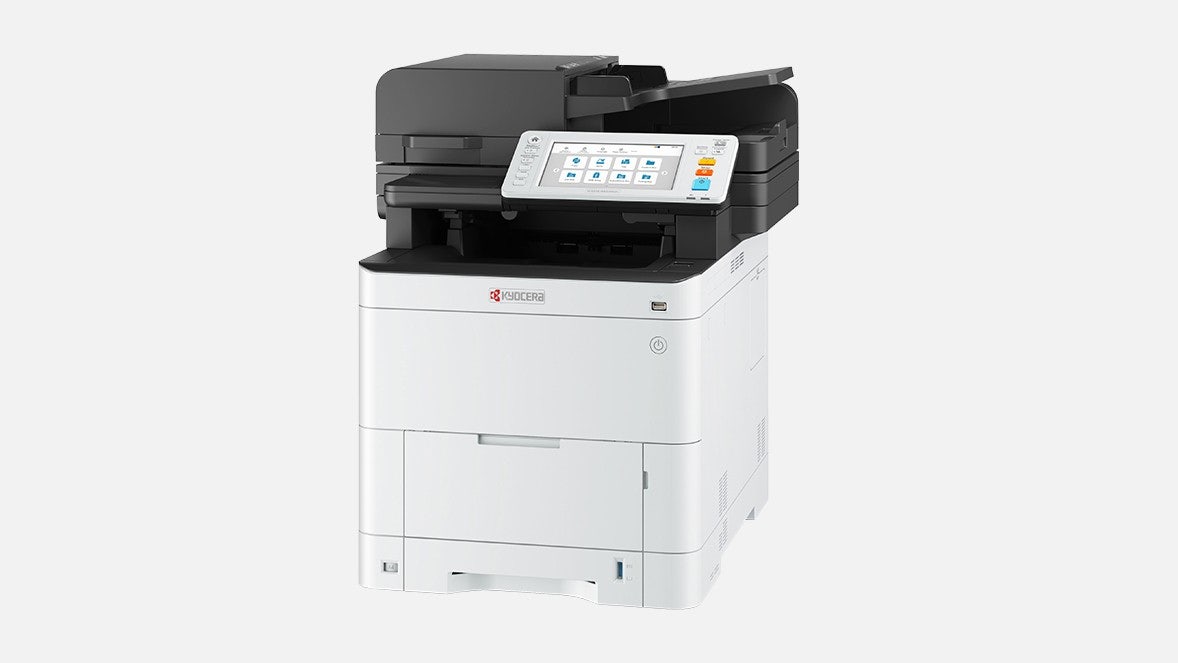

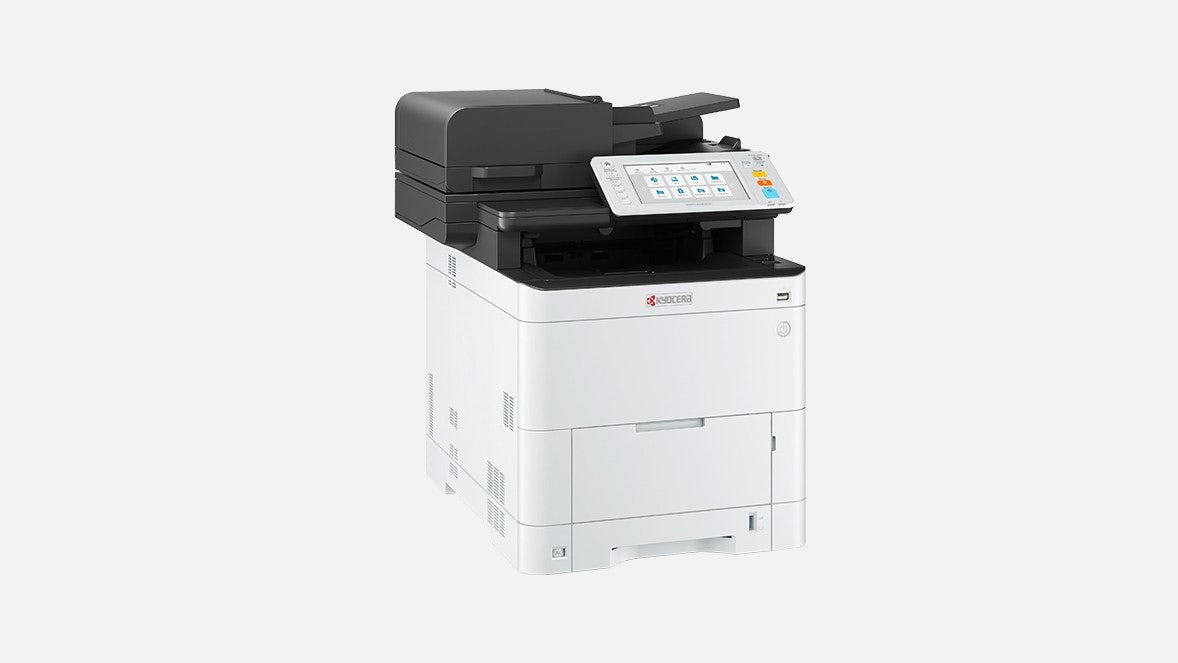

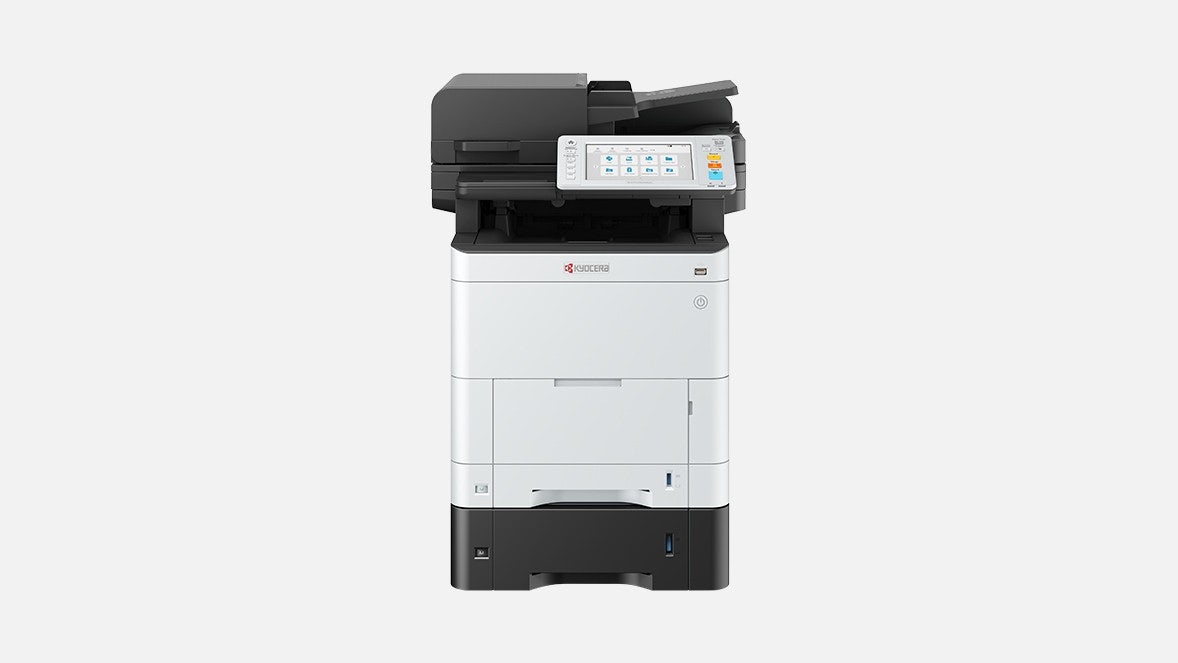

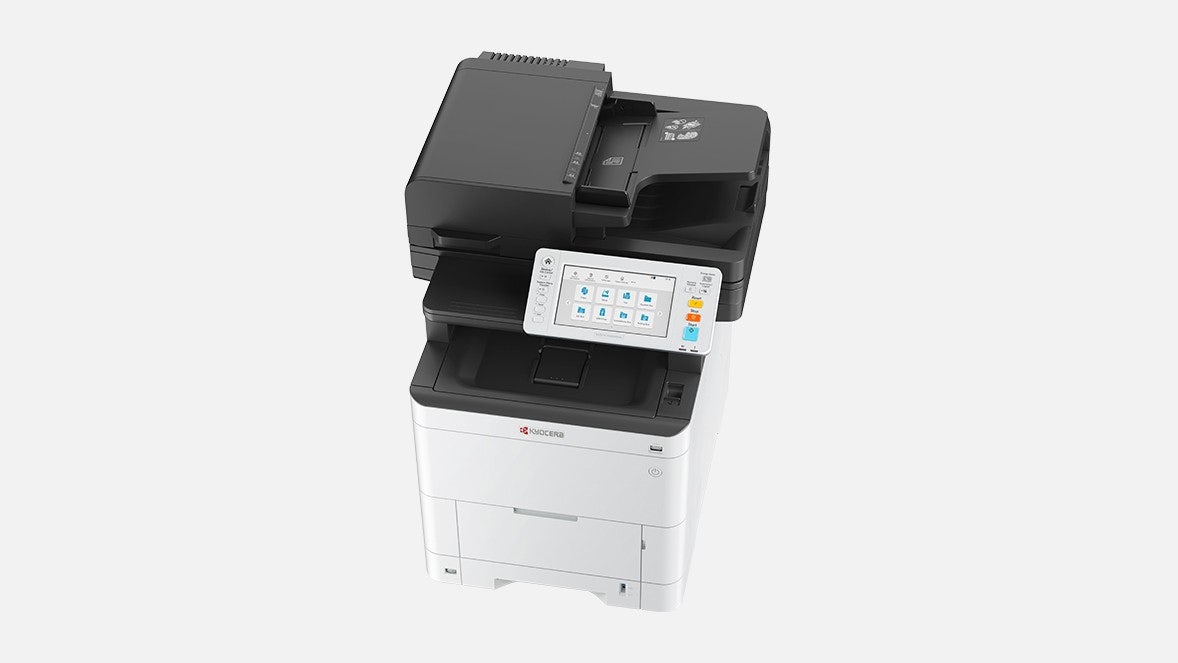

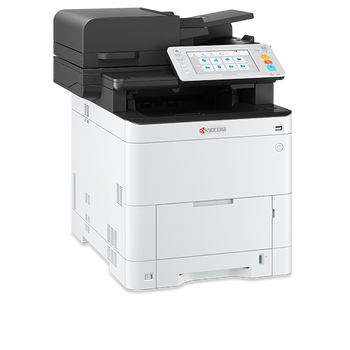

ECOSYS MA3500cifx

This new A4 colour device is designed specifically for medium and large-sized work groups, offering both reliability and fast output speeds in both colour and b/w and now complying with the newest environmental standards. The convenient touch panel provides simple, direct access to the multifunctionals’ numerous functions. What’s more, dedicated program keys and KYOCERA’s open solution platform HyPAS can help further optimize your document workflow. And for your bottom line it offers you an attractive TCO.

Double-sided print, copy, scan and fax.
7-inch full-colour touch panel provides ease of use.
HyPAS™ solution platform enables powerful customisations.

Engine speed

Up to 35 pages A4 per minute in colour and black and white

Resolution

1200 x 1200 dpi (tulostus, hiljaisempi nopeus), 600 x 600 dpi (skannaus/kopiointi)

Dimensions (W x D x H)

480 × 577.5 × 571.5 mm

Warranty

2-year warranty as standard. KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Multi-Functional Products for day-to-day tasks

Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

Multi-Functional Products for day-to-day tasks

Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.
A4 printer for all needs

KYOCERA’s A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

A4 printer for all needs

High quality, high reliability and high efficiency are essential.
ECOSYS: The sustainable solution

ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

ECOSYS: The sustainable solution

Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

ECOSYS MA3500cifx drivers
ECOSYS MA3500cifx documentation
ECOSYS MA3500cifx software

Main Specifications

General

General
Paper handling
Print
Copy
Scan
Fax

General type

A4 Colour multifunctional

Engine speed

Up to 35 pages A4 per minute in colour and black and white

Warm-up time

Approx. 26 seconds or less

Power consumption

Copy / Print: 532 W / 502 W, Ready mode: 57 W, Sleep-mode: 0.6 W,

Warranty

Input capacity

100-sheet multi-purpose tray, 60–220 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 250-sheet Standard universal paper cassette, 60–220 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm)

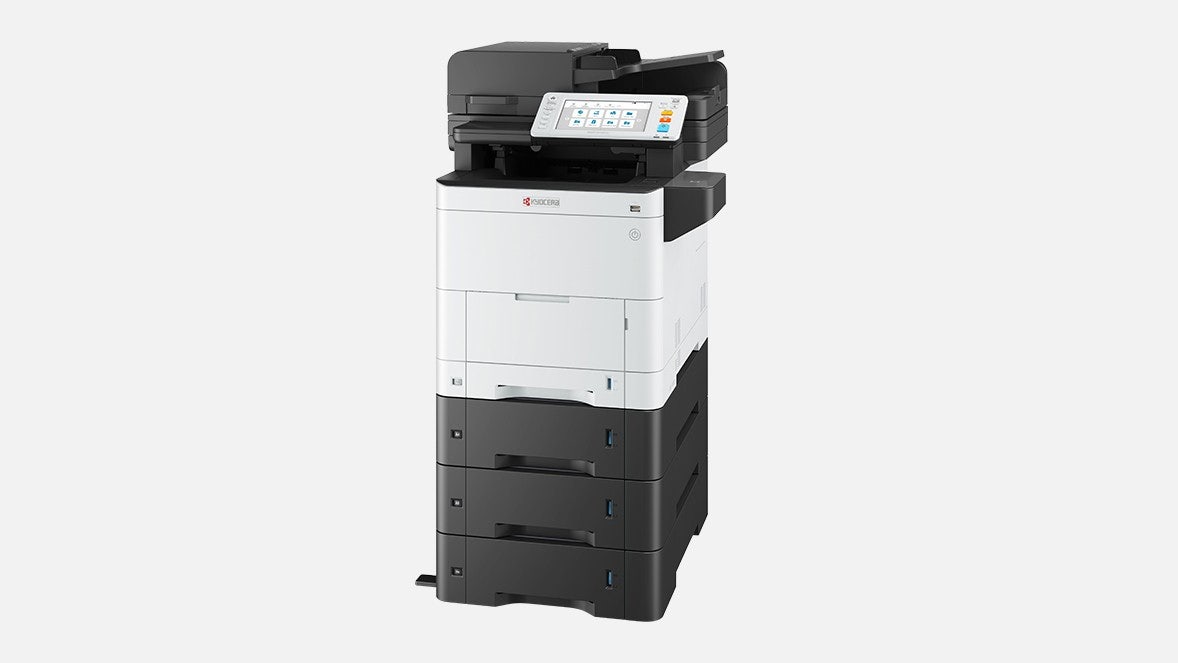

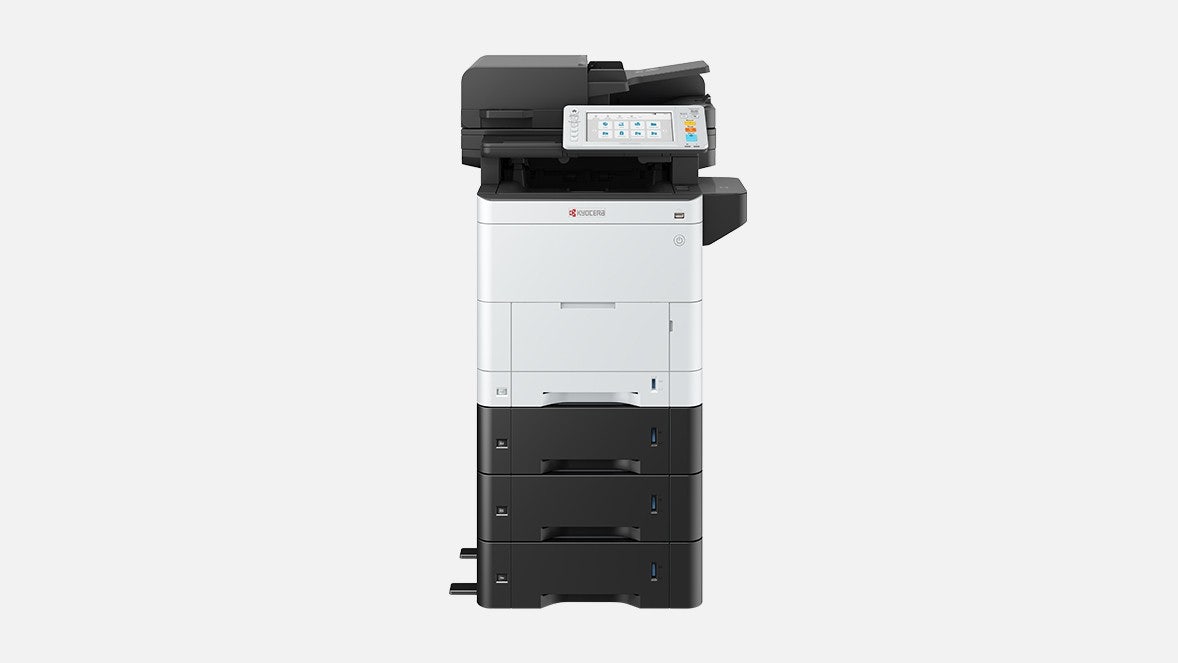

Max. input capacity with options

2,210 sheets

Duplex unit

Duplex as standard supports 60 – 163 g/m²; A4, A5, B5, Letter, Legal

Max. output capacity

Max. 250 sheets face-down with paper full sensor

Document processor

Reversing document processor: 100 sheets, 50–120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)

Processor

Cortex-A9 Dual core 1,2 GHz

Fonts

93 scalable fonts for PCL/PostScript, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13, EAN128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)

Features

Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality

Applicable OS

All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request

Max. original size

A4/legal

Continuous copy

1 - 999

Zoom range

25 - 400 % in 1% steps

Preset magnification ratios

7 Reductions / 5 Enlargements

Image adjustments

Text + Photo, Photo, Text, Map, Printed document

Digital copy features

Scan-once-copy-many, electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page

Scan functionalities

Scan-to-Email, Scan-to-FTP, Scan-to-SMB,Scan to USB Host, Local/Network TWAIN, WIA , WSD scan

Scan speed

100 ipm (300 dpi, A4, b/w), 80 ipm (300 dpi,A4 colour), 60 ipm (300 dpi, A4, b/w) (Duplex), 40 ipm (300 dpi, A4 colour) (Duplex)

Scan features

Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip

Scan resolution

200 dpi, 300 dpi, 400 dpi, 600 dpi (256 greyscales per colour)

Max. scan size

A4/legal

File type

TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required)

Original recognition

Text, photo, text + photo, light text, optimized for OCR

Compatibility

ITU-T Super G3

Modem speed

Maks. 33,6 kbps

Scanning speed

2 seconds

Transmission speed

3 seconds or less

Scanning density

Normal: 200 x 100 dpi, Fine: 200 x 200 dpi, Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi, Halftone: 256 greyscales

Max. original size

A4/legal

Fax features

Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

Options and Consumables

Options

Options

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

MD3-1024
1,024 MB RAM Expansion

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

Scan extension Kit (A) AC
Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HDD, SSD or SD-card is needed.

UG-33
ThinPrint support

UG-35
TPM (Trusted Platform Module)

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available
