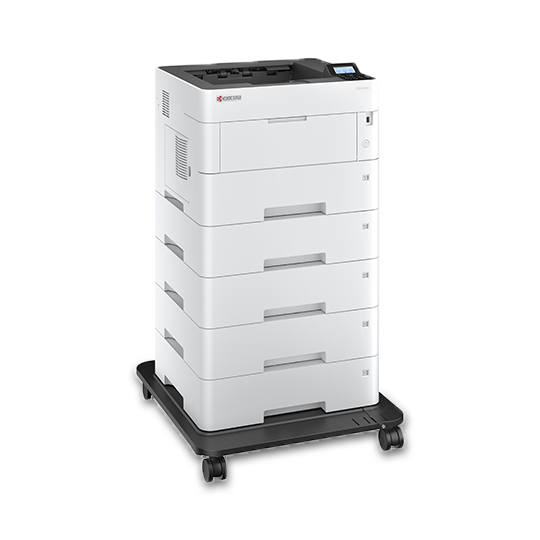

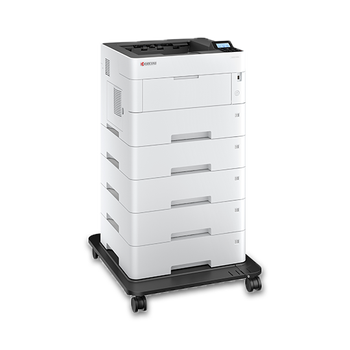

    square-540x540-product-information-ECOSYS_P4140dn_L_PF4_MAIN PAGE

    ECOSYS P4140dn

    A printer for workgroups that require a wide variety of output sizes from A6 up to A3 and offering an expandable paper capacity of up to 6 paper trays.

    • Double-sided print.
    • Cuts your running costs down to almost nothing.
    • Beneficial for the environment with long-life components and low energy consumption.
    • Gigabit LAN and optional Wi-Fi for any network environment.
    Engine speed

    Up to 40/22 pages A4/A3 per minute Duplex print speed: Up to 28 / 11 pages A4/A3 per minute

    Resolution

    1,200 × 1,200 dpi

    Time to first print

    Approx. 6.3 seconds or less

    Dimensions (W x D x H)

    477 × 410 × 343 mm including projections

    It's time to lock down your security

    With the rise of the digital era, information security has never been greater. Implementing solutions which enhance protection are now a must.

    • man holding his tablet
      New threats require new solutions

      Implementing the latest technologies to safeguard valuable information is now the responsibility of every company

    • hands with a laptop
      Secure your workplace, boost your efficiency

      Through cutting-edge innovation, the new ECOSYS P4140dn gives users the peace of mind they deserve and the efficiency they need.

    • hand holding a smartphone

      Secure operations for sustainable growth

      In the digital age, security will be a key indicator of success. Those who implement innovative security solutions will reap the rewards.

      Secure operations for sustainable growth
      Secure operations for sustainable growth

      The cyberthreats facing companies have never been greater. Implementing the right security solutions is essential.

    Main Specifications

    General

    • General

    • Paper handling

    • Print

    square-540x540-product-information-ECOSYS_P4140dn_L_PF4_MAIN PAGE
    General type
    Monochrome printer for A3 format
    Engine speed
    Up to 40/22 pages A4/A3 per minute Duplex print speed: Up to 28 / 11 pages A4/A3 per minute
    Warm-up time
    Approx. 18 seconds or less
    Power consumption
    Print Mode: 632 W Ready Mode: 11 W Sleep Mode: 0.5 W
    Warranty
    2-year warranty as standard (depending on the country). KYOCERA guarantees the drums and developers for 3 years or maximum 500,000 pages (whichever occurs sooner), provided the printer is used and cleaned in accordance with the service instructions.
    Input capacity
    Multi-purpose tray: 100 sheets, 60–220 g/m2, A3, B4, A4R, A4, A5, A6R, B5, Letter, LetterR, Legal, Ledger, Custom (70 x 148 mm to 297 x 1220 mm); Universal paper cassette: 500 sheets, 60–120 g/m2, A3, B4, A4R, A4, A5, A6R, B5, Letter, LetterR, Legal, Ledger, Custom (105 × 148 mm to 297 × 432 mm).
    Max. input capacity with options
    2,600 sheets
    Duplex unit
    Duplex as standard supports 60–120 g/m2, A3–A5R
    Output capacity
    500-sheet-face-down with paper full sensor and optional 250-sheet-face-up with PT-4100
    Processor
    Coretex-A9 1,2 GHz
    Fonts
    93 outline fonts (PCL), 136 fonts (KPDL 3), 8 fonts (Windows Vista), 1 Bitmap font, 79 barcodes (e. g. EAN8, EAN13, EAN128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)
    Features
    Toner save mode, N-Up printing (multiple pages on one sheet), Duplex print (double side printing), Proof and hold for multiple set printing, Poster print (multiple sheets for one page), Banner print (up to 297 x 1220 mm), e-mail printing, Internet-Printing IPP 1.0, WSD print.
    Applicable OS (Print)
    All current Windows operating systems, MAC OS X Version 10.9 or higher, Unix, Linux, as well as other operating systems on request

    Options and consumables

    Paper handling options

    • Paper handling options

    • Consumables

    • Options

    TK-7310
    Microfine toner black for 15,000 pages A4. Capacity of starter toner is 7,500 pages A4.

    CA-3100
    Caster stand

    CB-7100W
    Wooden cabinet

    Card Authentication Kit (B)
    Support for various authentication keys available

    HD-6
    32 GB for easy document management

    HD-7
    128 GB SSD hard disc for easy document management

    IB-32B
    Parallel IEEE1284 interface kit

    IB-36
    Wireless LAN (802.11b/g/n) with Wi-Fi Direct

    IB-50
    Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

    IB-51
    Wireless LAN Interface (802.11b/g/n)

    KYOmulticode SD 3
    Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

    MD3-1024
    1,024 MB RAM Expansion

    MDDR3-2GB
    2,048 MB RAM Expansion

    PCL Barcode SD
    Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

    UG-33
    ThinPrint support

    USB IC Card Reader + Card Authentication Kit (B)
    Support for various authentication keys available

    Find the perfect match

    Our Product Configurator helps you find the right set-up for the device you’re interested in. Select available add-ons to suit your specific needs.
    Set it up Set it up
    • ECOSYS P4140dn drivers
    • ECOSYS P4140dn documentation
    • media-image-large-1178x663-gallery-02. ECOSYS_P4140dn_R

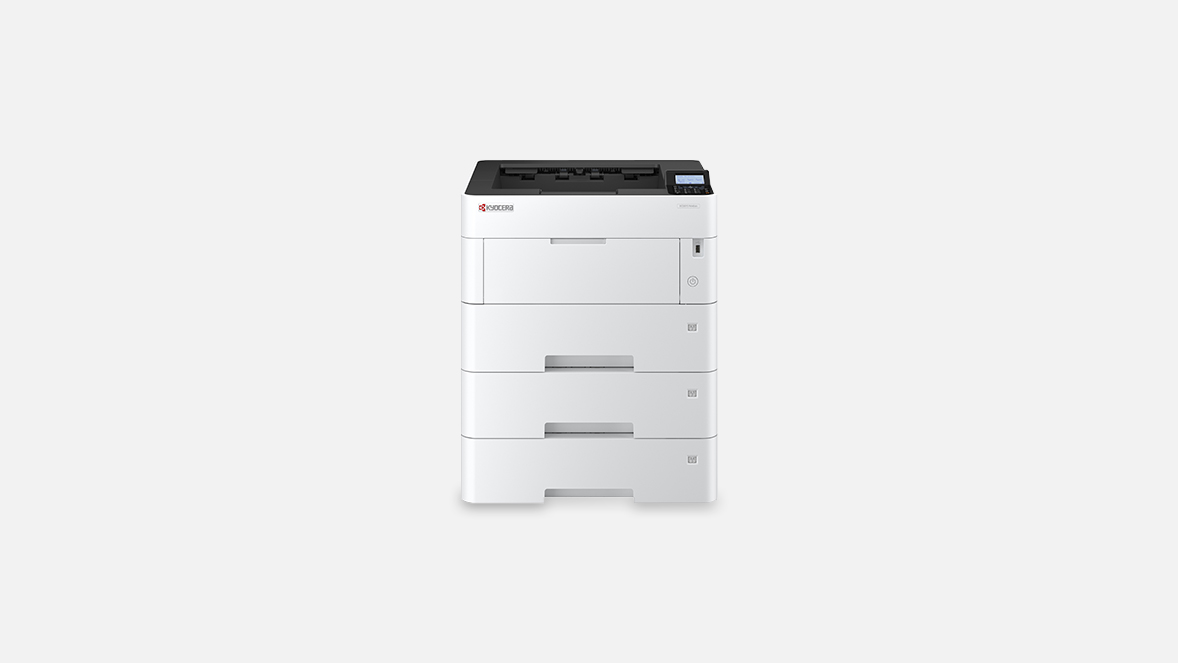

    • media-image-large-1178x663-gallery-04. ECOSYS_P4140dn_F_PF2

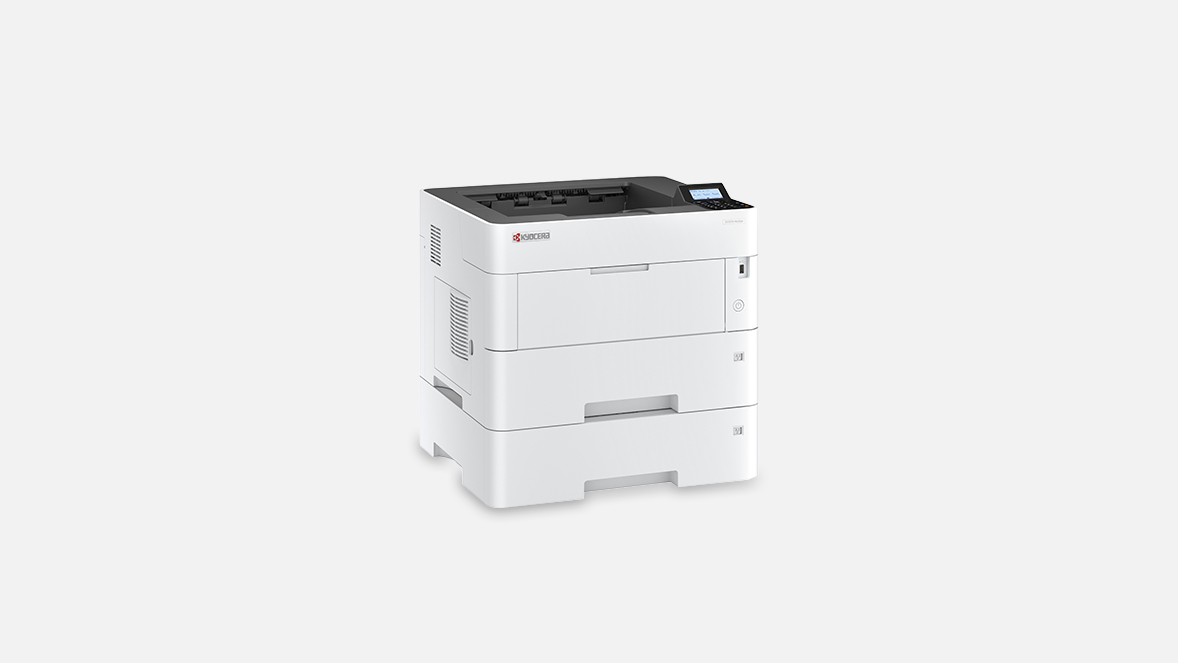

    • media-image-large-1178x663-gallery-03. ECOSYS_P4140dn_L_PF1

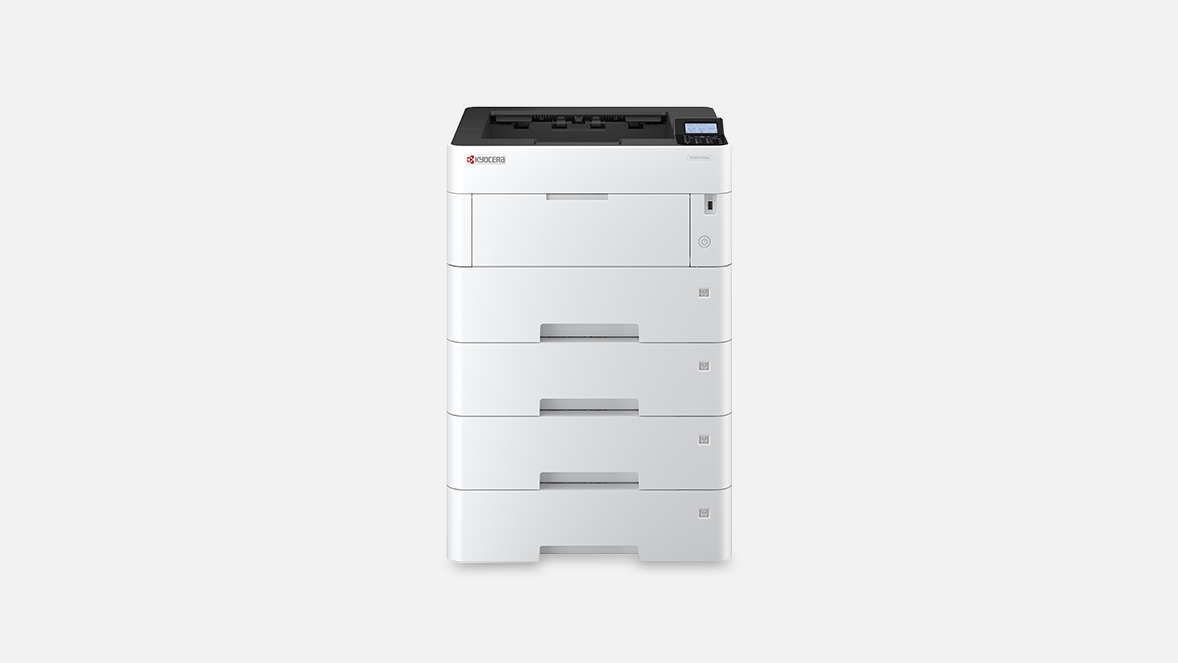

    • media-image-large-1178x663-gallery-05. ECOSYS_P4140dn_F_PF3

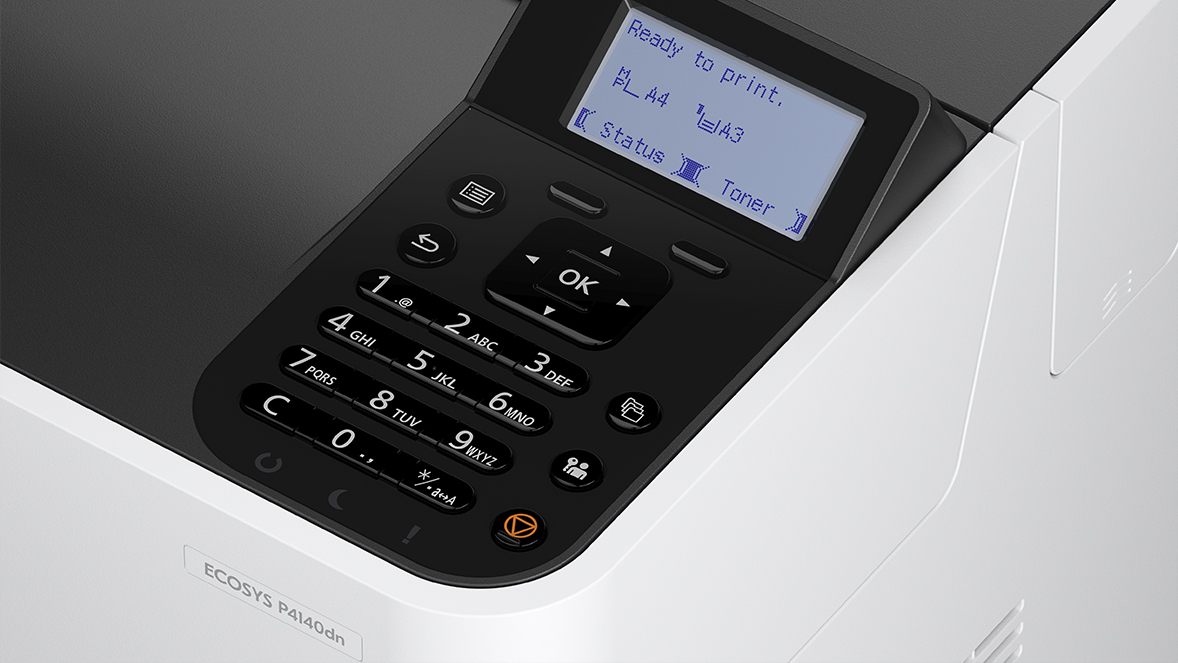

    • media-image-large-1178x663-gallery-06. Panel_ECOSYS_P4140dn_V2_eng

    Related products

    Kyocera solutions to resolve all business needs.

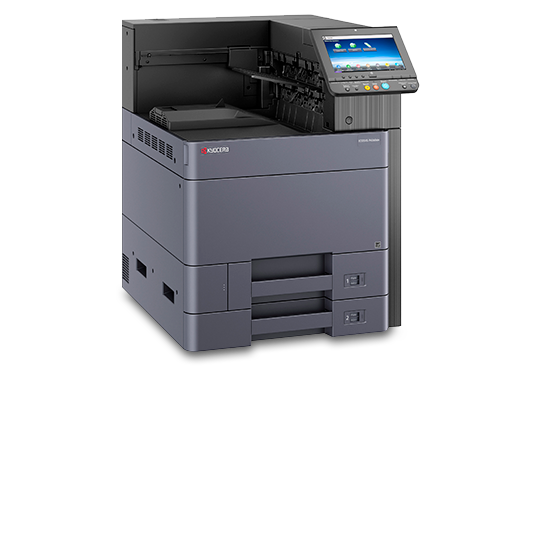

    • ECOSYS P4060dn

      ECOSYS P4060dn

      A printer for workgroups that require a wide variety of output sizes from A6 up to A3.

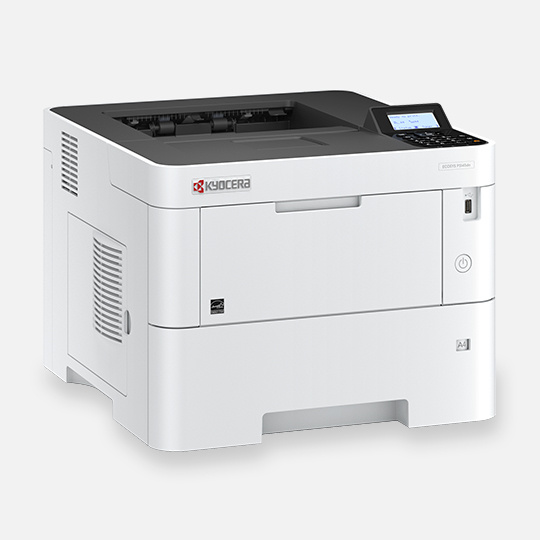

    • ECOSYS P3145dn

      ECOSYS P3145dn

      Highly productive and compact monochrome printer aimed at small and midsize workgroups.

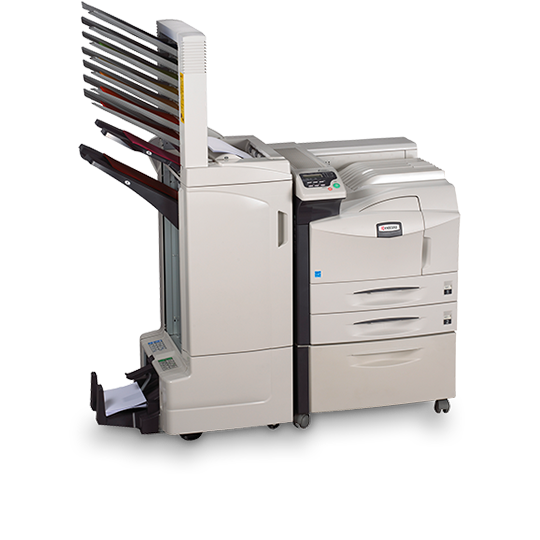

    • FS-9530dn
