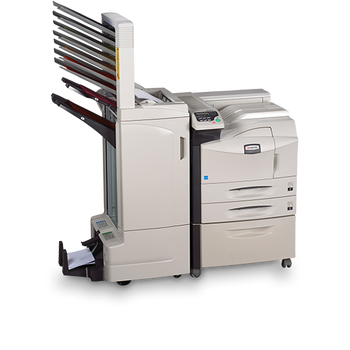

    printers-540x540-fs9530dn

    FS-9130DN

    With a print speed of 40ppm in A4, the Kyocera FS-9130DN is ready to carry you through the heaviest of loads without slowing down. Fast, efficient and reliable, this printer also has a highly functional modular design. The paper and finishing options make it easy to fit the printer to your department’s precise needs.

    • 40ppm A4 and 23ppm A3 departmental printer
    • 64MB memory standard, upgradeable to 576MB
    • Duplex and network connectivity as standard
    • 100 department codes to track and control printer use
    • PDF direct printing from USB Flash Memory devices
    • High volume paper options and versatile finishing features
    • Long-life components and easy maintenance
    • 2 years On-Site warranty as standard
    Engine speed

    Up to 40/23 pages per minute simplex; up to 33/16 pages (16/8 sheets) per minute A4/A3 duplex

    Resolution

    1,200 dpi quality (1,800 x 600)

    Dimensions (W x D x H)

    Main unit: 599 x 646 x 615 mm

    • FS-9130DN drivers
    • FS-9130DN documentation
    • FS-9130DN software

    Main Specifications

    General

    • General
    • Paper Handling
    • Print
    printers-540x540-fs9530dn
    General type
    ECOLaserprinter A3
    Engine speed
    Up to 40/23 pages per minute simplex; up to 33/16 pages (16/8 sheets) per minute A4/A3 duplex
    Warm-up time
    60 seconds or less from power on
    Power consumption
    Printing: 710 W, Stand-by: 160 W, Sleep-mode: 4.5 W
    Warranty
    2 years On-Site warranty as standard
    Input capacity
    2 x 500-sheet universal paper feeder, 60-105 g/m², A3, A4, A4R, A5R, B4, B5,B5R, Letter, Letter-R, Legal, Ledger, Folio, STMT 200-sheet multi-purpose tray, 45-200 g/m², A3-A6R, Custom (88 x 148 mm to 297 x 450 mm)
    Max. input capacity with options
    4.200 sheets A4 (with optional paper feeder PF-750)
    Duplex unit
    Double-side printing as standard; A3, A4, A4R, A5R, B4, B5, B5R, Letter, Letter-R, Legal, Ledger, 60-80 g/m²
    Processor
    PowerPC 750FL / 600 MHz
    Fonts
    80 outline fonts (PCL), 136 PostScript Fonts, 1 bitmap font, 45 types of one-dimensional barcodes plus two-dimensional barcode (PDF-417)
    Features
    EMPS, Job management functionality with optional hard disk HD-5, Proof and hold, Private print, Job storage, PDF direct print via USB Flash memory device, 100 department codes for Accounting and professional finishing capabilities
    Applicable OS (Print)
    All current Windows operating systems, Mac OS X Version 10.2 or higher, UNIX, LINUX as well as other operating systems on request

    Options and Consumables

    Paper Handling Options

    • Paper Handling Options
    • Consumables
    • Options

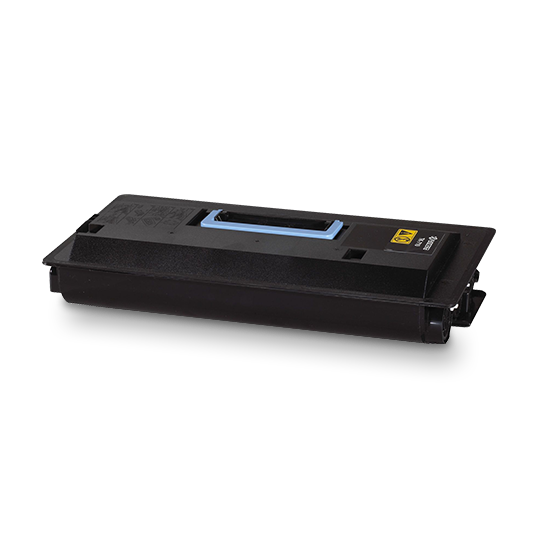

    TK-710
    Microfine toner for 40000 pages in accordance with ISO/IEC 19752

    CF-4GB
    CompactFlash® card: 4GB for printing forms, fonts, logos, macro storage and for HyPAS™ applications

    Data Security Kit
    Type C

    HD-5
    Hard disc for easy document management

    IB-11
    Serial interface, max. 115.2 kbps (RS-232C)

    IB-23
    10Base-T/100Base-TX

    KYOmulticode 1.0 Type A
    Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

    MDDR-128
    128 MB RAM Expansion

    MDDR-256
    256 MB RAM Expansion

    MDDR-512
    512 MB RAM Expansion

    PCL Barcode Flash 3.0 Type A
    Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

    PS1109 Gigabit Printserver
    10BaseT/100BaseTX/ 1000BaseT (RJ-45)

    PS1129 Gigabit Fibre Optic
    1000BaseSX (SC)

    PS129 Fibre Optic
    100BaseSX (SC)

    PS159 Wireless LAN
    (802.11b/g/n)

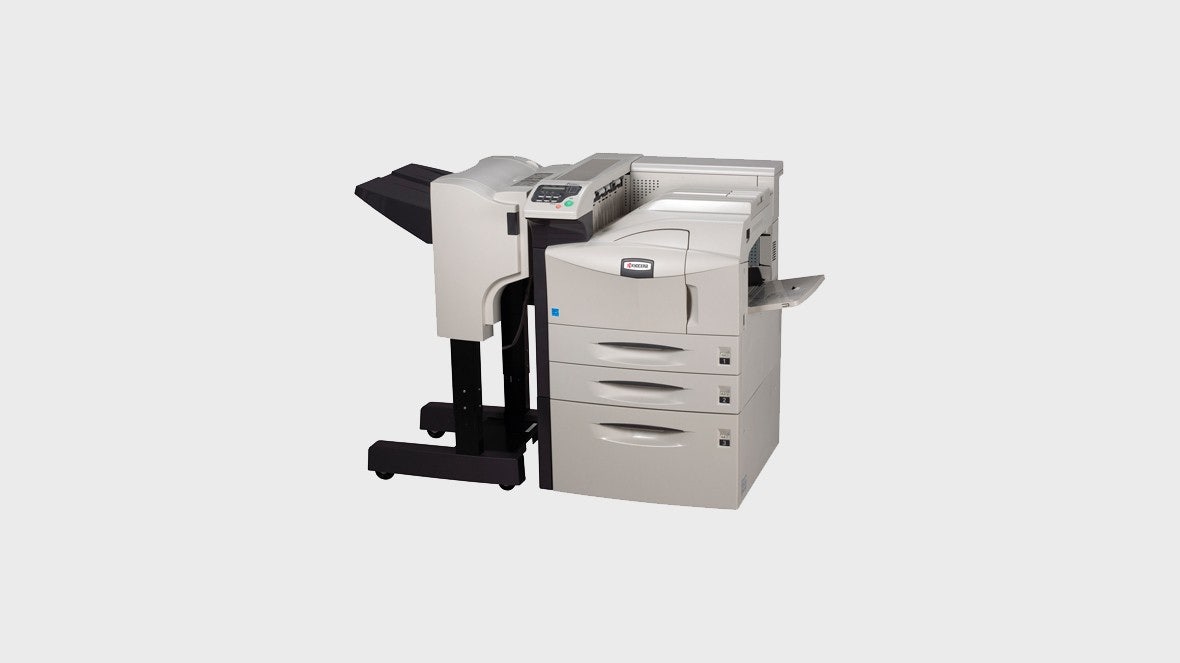

    • imagegallery-1180x663-FS-9530DN-addons-LOW-RES

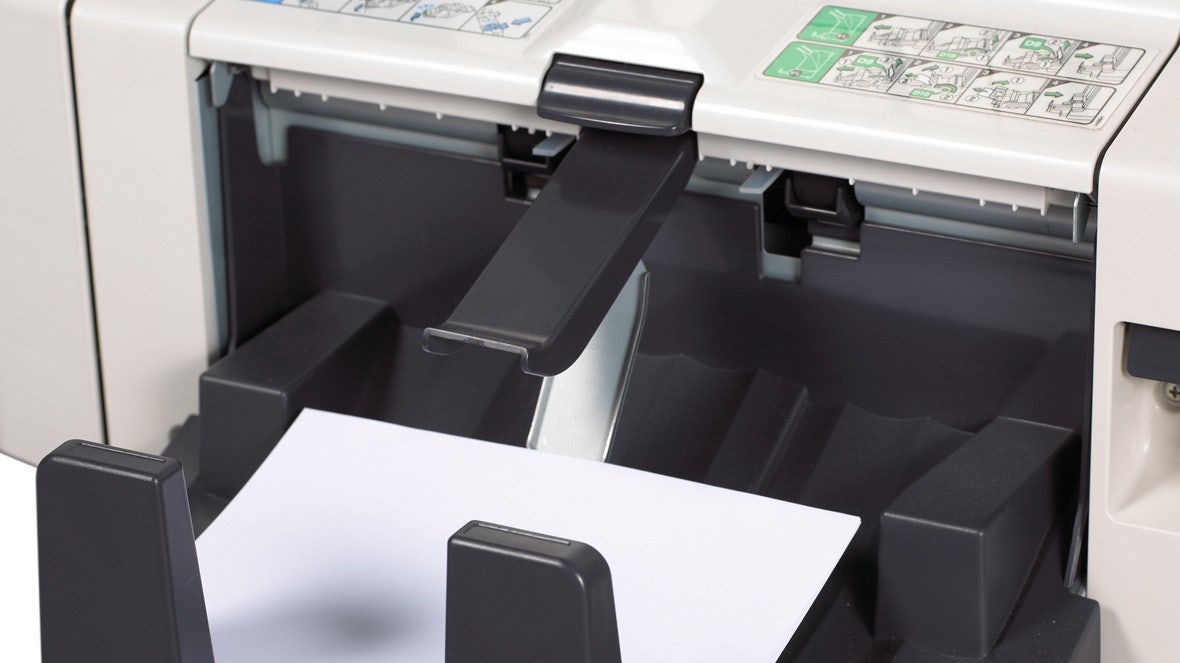

    • imagegallery-1180x663-FS-9530DN-closeup

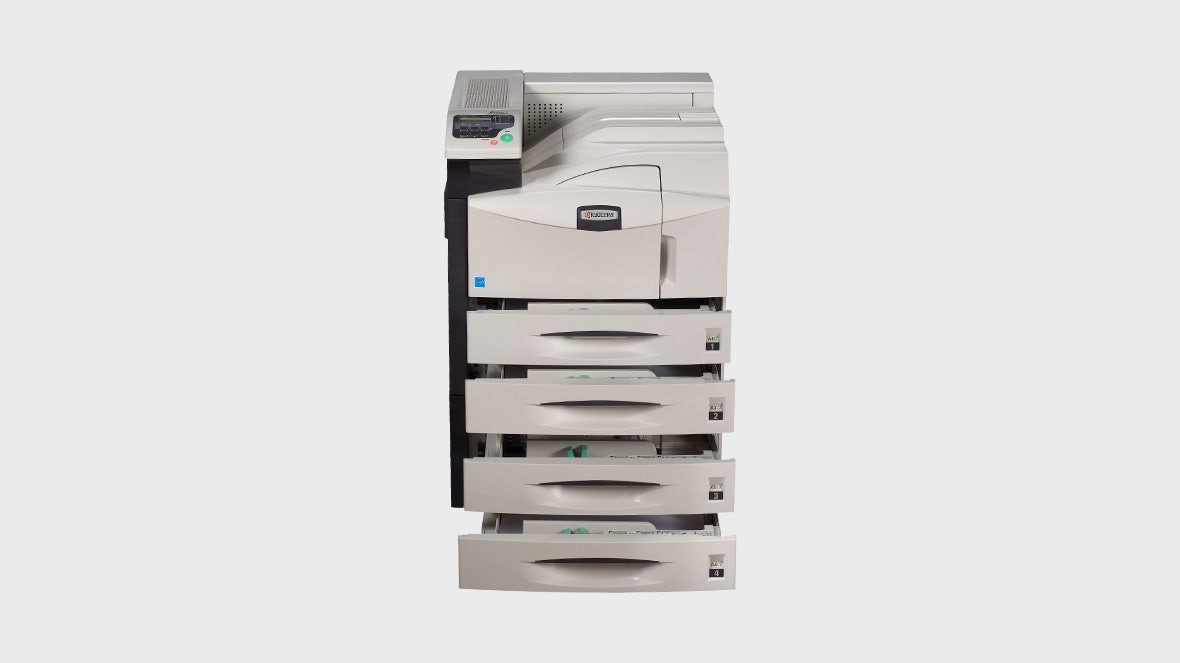

    • imagegallery-1180x663-FS-9530DN-front

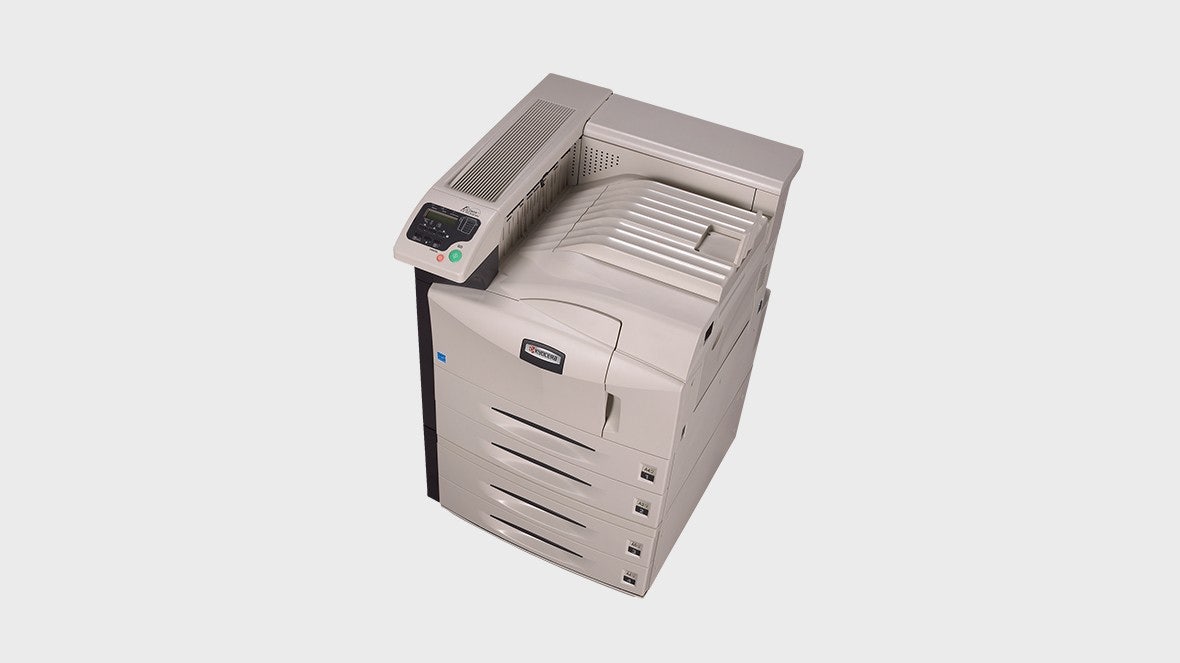

    • imagegallery-1180x663-FS-9530DN-top

    Our environmental policy

    The environment matters to Kyocera. We want to make the world a better place for the next generation.
    Read more Read more

    Related products

    Kyocera solutions to resolve all business needs.

    • TK-710

      TK-710

      Microfine toner for 40,000 pages in accordance with ISO/IEC 19752.

    • ECOSYS P8060cdn

      ECOSYS P8060cdn

      A3 colour printer perfect choice for demanding workgroups and production offices.

    • FS-9530dn

      FS-9530dn

      Highly functional modular design that large departments need.
