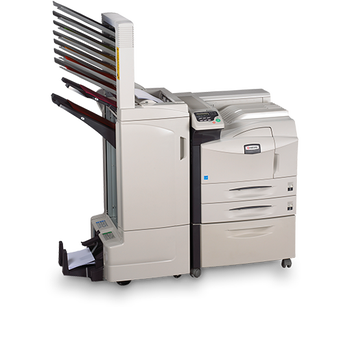

FS-9530DN

Wonderfully fast and reliable, the FS-9530DN printer also comes with a highly functional modular design that large departments need to get the entire job done. And with a print speed of 51 pages per minute in A4, the Kyocera FS-9530DN can handle large print volumes quickly and professionally.

51ppm A4 and 26ppm A3 departmental printer
128MB memory standard, upgradeable to 640MB
Duplex and network connectivity as standard
100 department codes to track and control printer use
High volume paper options and versatile finishing features
Long-life components and easy maintenance
2 years On-Site warranty as standard

Main Specifications

General

General
Paper Handling
Print

General type

Printer monochrome A3

Engine speed

Up to 51/26 pages per minute A4/A3 simplex; up to 37/17 pages (18/8 sheets) per minute A4/A3 duplex

Warm-up time

60 seconds or less from power on

Power consumption

Printing: 900 W, Stand-by: 180 W, Sleep-mode: 4.5 W

Warranty

2 years On-Site warranty as standard

Input capacity

2 x 500-sheet universal paper feeder, 60-105 g/m², A3, A4, A4R, A5R, B4, B5, B5R, Letter, Letter-R, Legal, Ledger, Folio, STMT; 200-sheet multi-purpose tray, 45-200 g/m², A3-A6R, Custom (88 x 148 mm to 297 x 450 mm)

Max. input capacity with options

4.200 sheets A4 (with optional paper feeder PF-750)

Duplex unit

Double-side printing as standard; A3, A4, A4R, A5R, B4, B5, B5R, Letter, Letter-R, Legal, Ledger, 60-80 g/m²

Processor

PowerPC 750FL/600 MHz

Fonts

80 outline fonts (PCL), 136 PostScript Fonts, 1 bitmap font, 45 types of one-dimensional barcodes plus two-dimensional barcode (PDF-417); Downloadable fonts: Kyocera, PCL + TrueType format, Type 1 + 3 format

Features

Job management functionality with optional hard disk HD-5 for EMPS, Proof and hold, Private print and Job storage 100 department codes for Accounting, PDF direct print via USB Flash memory device and professional finishing capabilities

Applicable OS (Print)

All current Windows operating systems, Mac OS X Version 10.2 or higher, UNIX, LINUX as well as other operating systems on request

Options and Consumables

Paper Handling Options

Paper Handling Options
Consumables
Options

TK-710
Microfine toner for 40000 pages in accordance with ISO/IEC 19752

CF-4GB
CompactFlash® card: 4GB for printing forms, fonts, logos, macro storage and for HyPAS™ applications

Data Security Kit
Type C

HD-5
Hard disc for easy document management

IB-11
Serial interface, max. 115.2 kbps (RS-232C)

IB-23
10Base-T/100Base-TX

KYOmulticode 1.0 Type A
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

MDDR-128
128 MB RAM Expansion

MDDR-256
256 MB RAM Expansion

MDDR-512
512 MB RAM Expansion

PCL Barcode Flash 3.0 Type A
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

PS1109 Gigabit Printserver
10BaseT/100BaseTX/ 1000BaseT (RJ-45)

PS1129 Gigabit Fibre Optic
1000BaseSX (SC)

PS129 Fibre Optic
100BaseSX (SC)

PS159 Wireless LAN
(802.11b/g/n)
