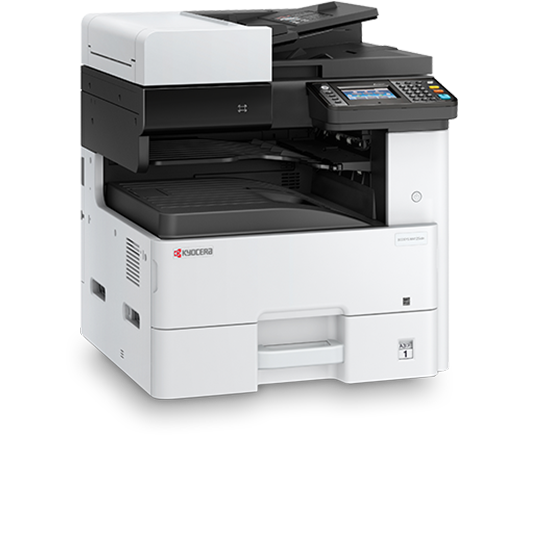

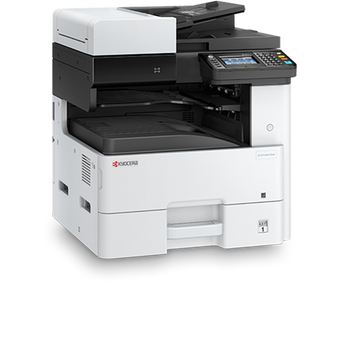

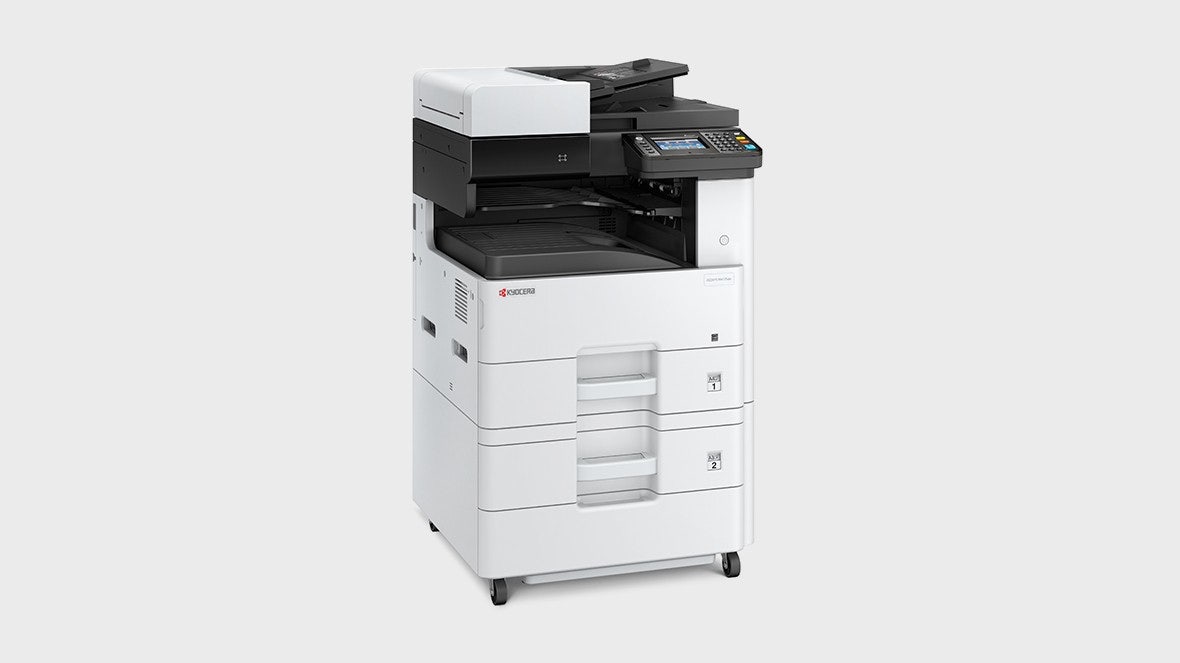

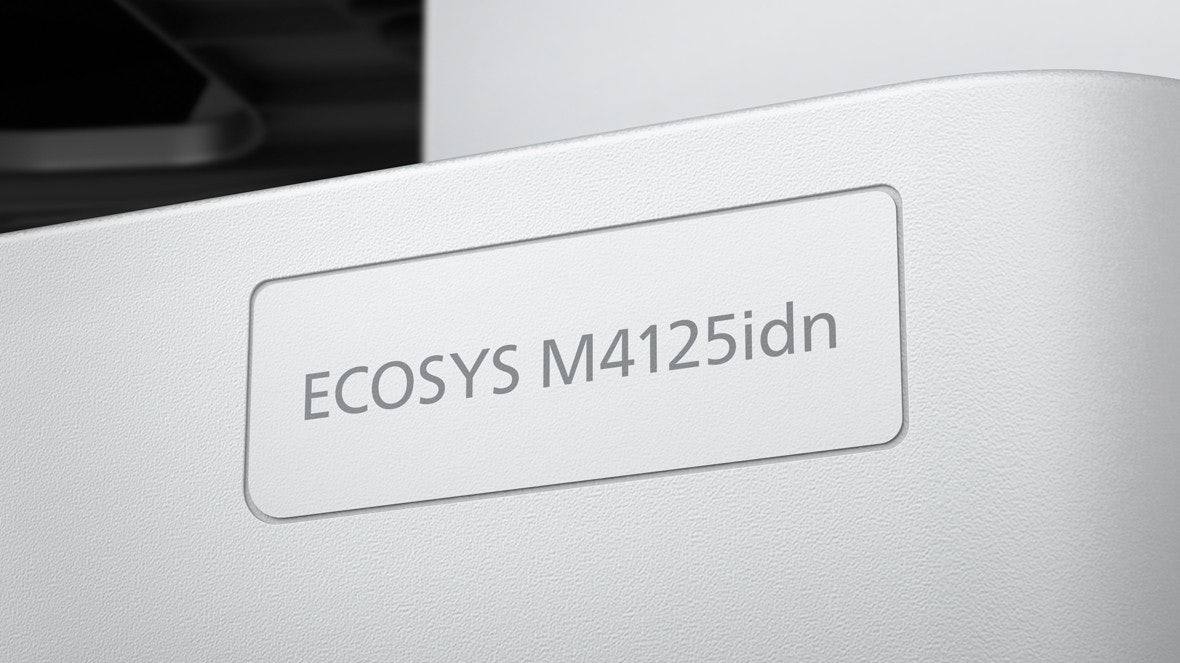

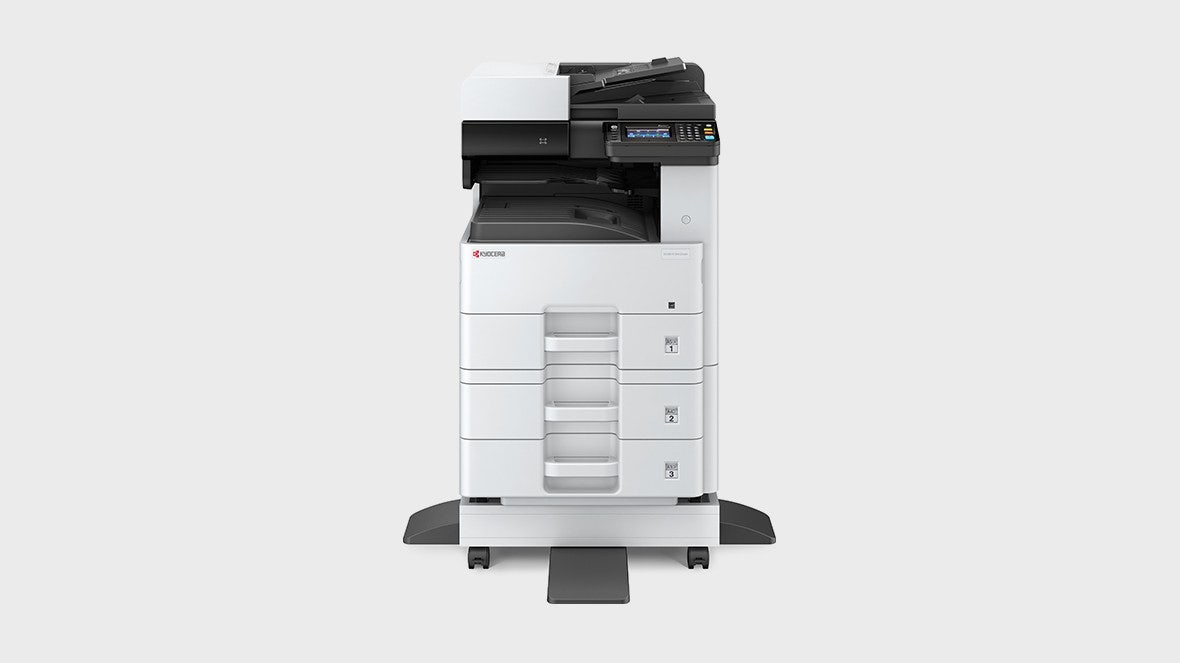

ECOSYS M4125idn

A4/A3 monochrome Multi-Functional Product with 25 page per minute efficiency (A4) for small teams looking for functionality, usability and compact size.

Minimum installation and operation requirements.

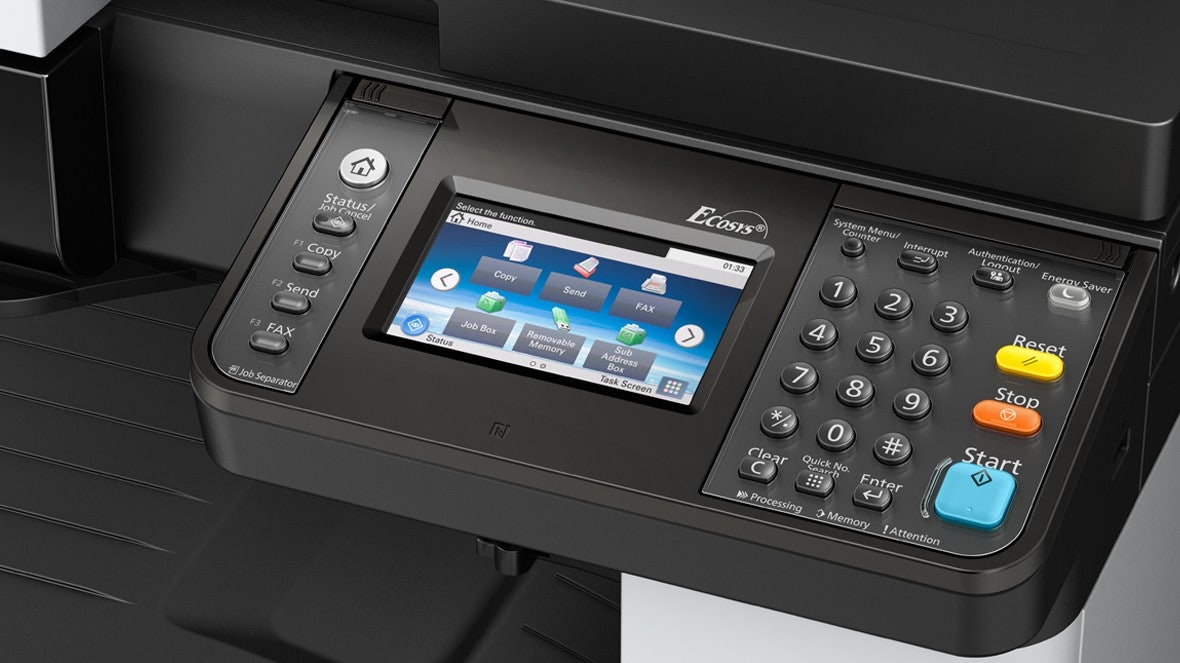

Simple and wizard operations.
Long-life components provide exceptional reliability.
HyPAS solution platform enables powerful customisations.

Engine speed

Up to 25/12 pages A4/A3 per minute

Resolution

1200 x 1200 dpi (print), 600 x 600 dpi (scan/copy)

Dimensions (W x D x H)

590x590x688 mm (with standard Document Processor)

Warranty

Additional warranty on long-life parts for 3 years or 300 000 pages

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Multi-Functional Products for day-to-day tasks

Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

Multi-Functional Products for day-to-day tasks

Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.
ECOSYS: The sustainable solution

ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

ECOSYS: The sustainable solution

Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.
A3 and A4 printers for all needs

KYOCERA’s A3 and A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

A3 and A4 printers for all needs

High quality, high reliability and high efficiency are essential.

ECOSYS M4125idn drivers
ECOSYS M4125idn documentation
ECOSYS M4125idn software

Main Specifications

General

General
Paper Handling
Print
Copy
Scan
Fax

General type

Black and white multifunctional for A4/ A3 format

Engine speed

Up to 25/12 pages A4/A3 per minute

Warm-up time

20 seconds or less

Power consumption

Sleep-mode: 0.5 W, Ready mode: 65 W, Copying/Printing: 410 W

Warranty

2-year warranty as standard. KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.

Input capacity

100-sheet multi-purpose tray, 45–256 g/m²: A3, A4, A5, A6, B5, Ledger, Letter, Legal, Folio, Custom (98 x 148 to 297 x 432 mm); 500-sheet standard universal paper cassette, 60–163 g/m²: A3, A4, A5,´B5, Ledger, Letter, Legal, Folio

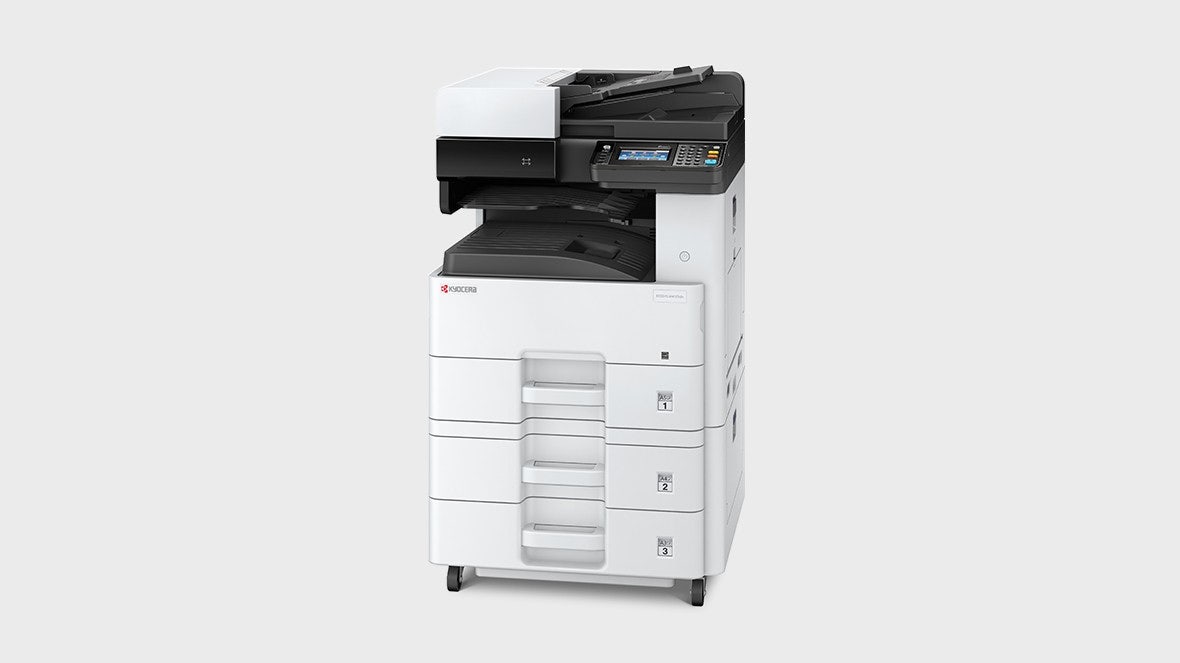

Max. input capacity with options

1,600 sheets

Duplex unit

Printing: 773 W Copying: 798 W Low power mode: 23 W Ready mode: 24 W Sleep-mode: 0.5 W

Max. output capacity

Max. 300 sheets: 250 sheets face-down (main tray), plus 50 sheets (standard job separator tray)

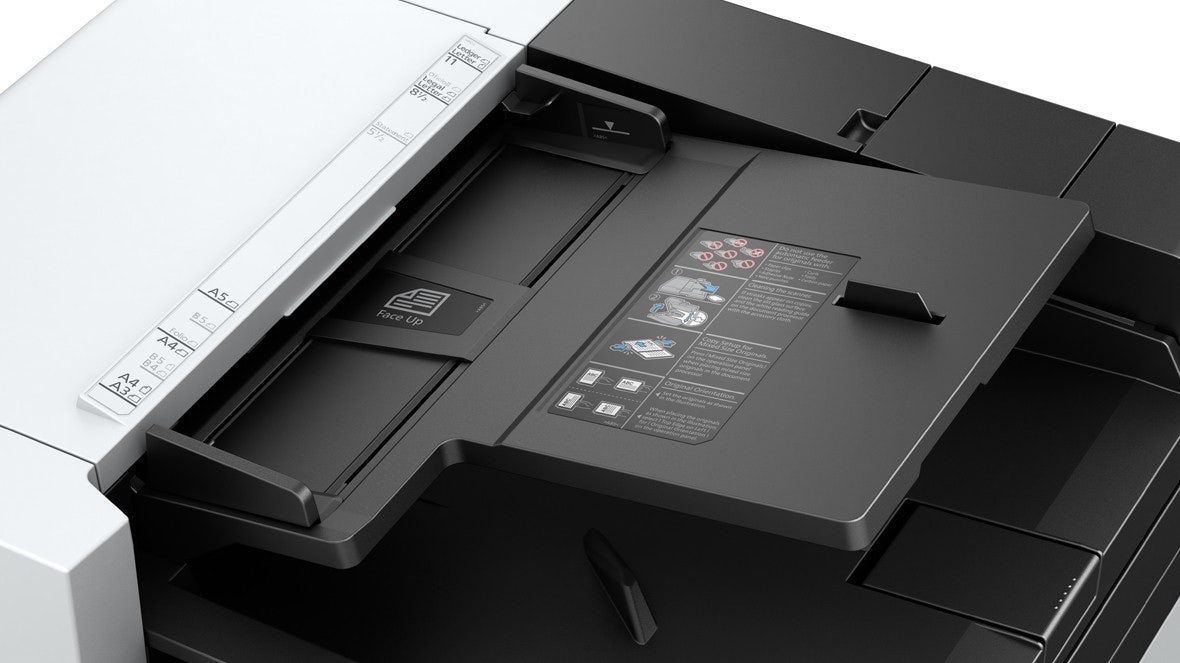

Document processor

Standard reversing document processor: 50-sheet, Simplex scan 45–160 g/m², Duplex scan 50–120 g/m², A3, A4, A5, B5, Letter, Legal, Custom (140x182 to 297x432mm)

Processor

ARM Cortex-A9 Dual core1.2 GHz

Fonts

93 outline fonts (PCL 6, KPDL 3) + 8 (WindowsVista), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)

Features

Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Private Print quick copy, proof and hold, job storage and job management functionality

Applicable OS

All current Windows operating systems, MAC OS X Version 10.5 or higher, Unix, Linux as well as other operating systems on request

Max. original size

A3/Ledger

Continuous copy

1 - 999

Zoom range

25 - 400 % in 1% steps

Preset magnification ratios

5 Reductions/5 Enlargements

Image adjustments

Text, Photo, Text + Photo, Map, Copy/Printout

Digital copy features

Scan-once-copy-many, electronic sort, 2in1, 4in1, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change (PF-470 or PF-471 is required), copy density control, Prevent Bleed-Through, ID card copy, Skip Blank Page

Scan functionalities

Scan-to-email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Network TWAIN, WIA, WSD scan

Scan speed

50 ipm (300 dpi, A4, b/w), 50 ipm (300 dpi, A4, colour)

Scan features

Colour Scan integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip

Scan resolution

200 dpi, 300 dpi, 400 dpi, 600 dpi (256 greyscales per colour)

Max. scan size

A3/Ledger

File type

PDF, PDF/A, JPG, Encrypted PDF, High Compression PDF, TIFF, Open XPS, PDF/A-1a/b, PDF/A-2a/b/u

Original recognition

Text, photo, text + photo, light text, optimized for OCR

Compatibility

ITU-T Super G3

Modem speed

Max. 33.6 kbps

Scanning speed

2.0 seconds or less

Transmission speed

Max. 33.6 kbps

Scanning density

Normal: 8 dot/mm x 3.85 line/mm (200x100 dpi), Fine: 8 dot/mm x 7.7 line/mm (200x200 dpi), Superfine: 8 dot/mm x 15.4 line/mm (200x400dpi), Ultrafine: 16 dot/mm x 15.4 line/mm (400x400 dpi), Halftone: 256 gray scales

Max. original size

A3/Ledger

Fax features

Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

Options and Consumables

Paper Handling Options

Paper Handling Options
Consumables
Options

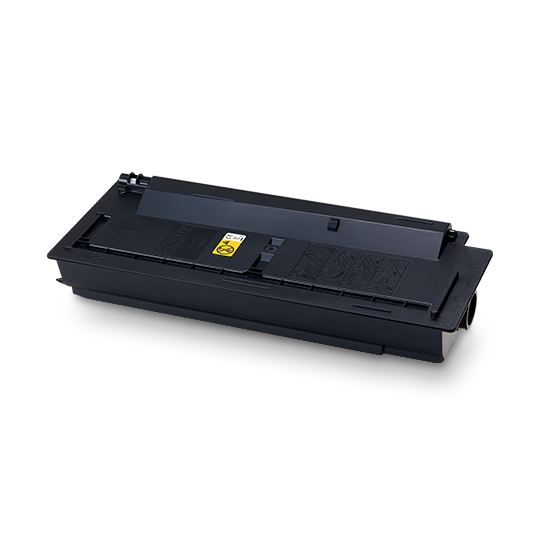

TK-6115
Microfine toner black for 15,000 pages. Capacity of starter toner is 3,000 pages A4. Average continuous toner yield in accordance with in accordance with ISO/IEC 19752

CB-470
Wooden cabinet

CB-471
Base unit

CB-472
Metal cabinet

CB-473
Base unit (metal)

Card Authentication Kit (B)
Support for various authentication keys available

Data Security Kit (E) AC
In line with ISO 15408 (Common Criteria). Only 4in1 MFP-models carry official CC-Certification.

Fax System 13
Super G3 Fax, network fax

HD-6
32 GB for easy document management

HD-7
128 GB SSD hard disc for easy document management

IB-36
Wireless LAN (802.11b/g/n) with Wi-Fi Direct

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

MD3-1024
1,024 MB RAM Expansion

MDDR3-2GB
2,048 MB RAM Expansion

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

Scan extension Kit (A) AC
Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HDD, SSD or SD-card is needed.

UG-33
ThinPrint support
