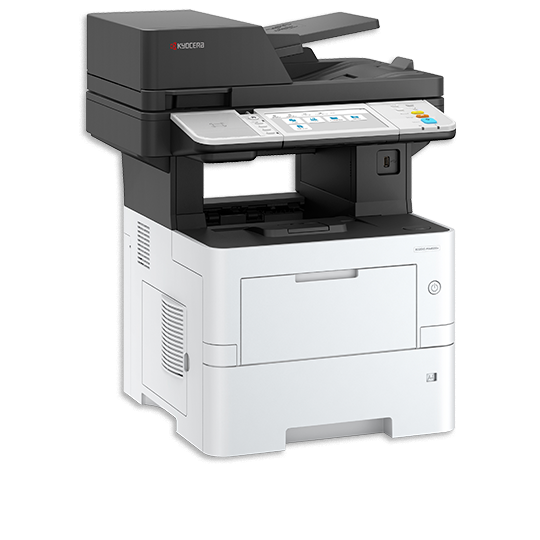

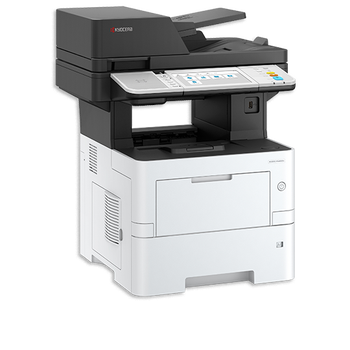

square-540x540.ECOSYS-MA4500ix

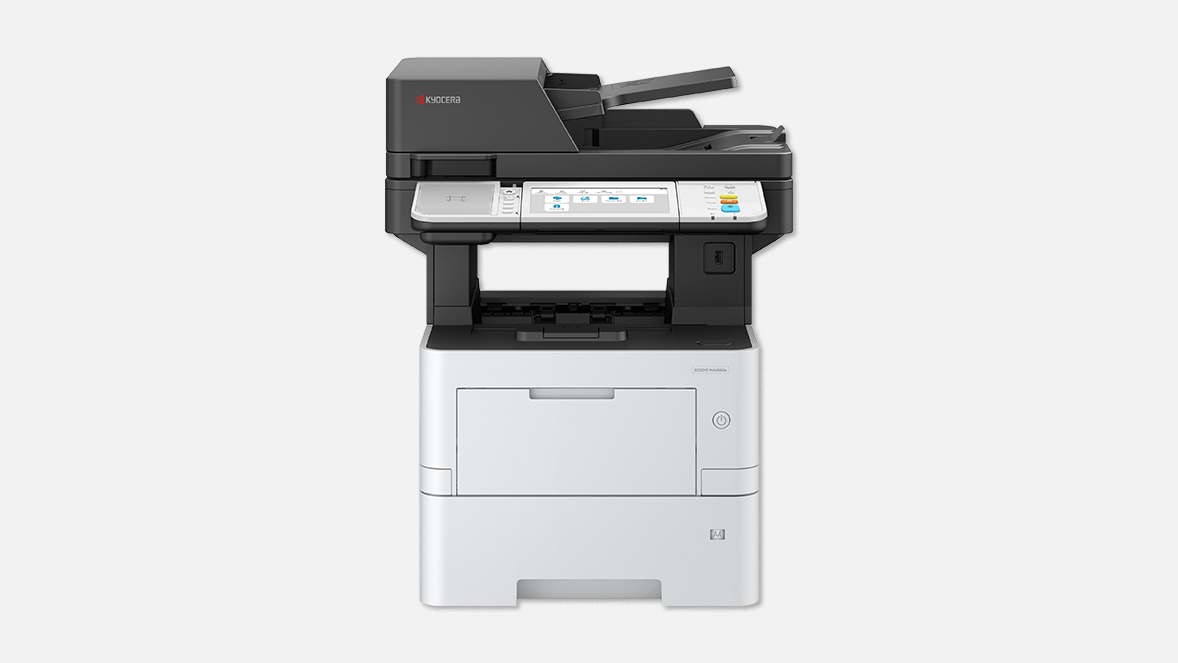

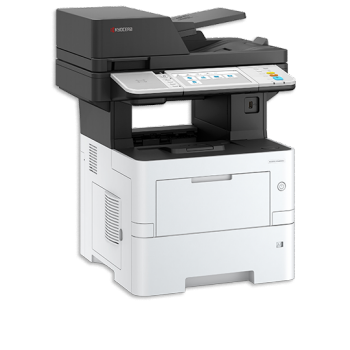

ECOSYS MA4500ix

The ECOSYS MA4500ix is both compact and powerful A4, its reliability a guarantee of outstanding quality from the first print to the last. Equipped with high-end security capabilities and low energy consumption functions, this MFP is the perfect fit for small to medium workspaces.

  • Double-sided print, copy and scan.

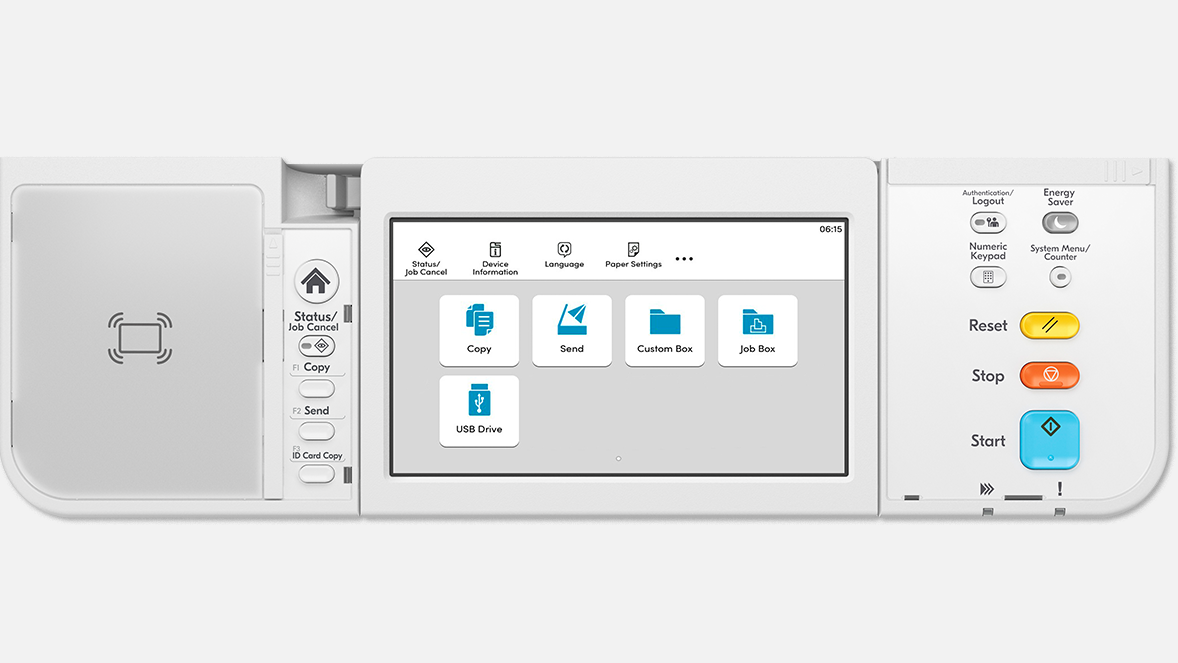

  • 7-inch full-colour touch panel provides ease of use.
  • HyPAS™ solution platform enables powerful customisations.
  • Provide OCR and Microsoft Office scan possibilities (option).
Engine speed

Up to 45 pages A4 per minute. Duplex print speed: 22.5 page per minute, A4. Duplex copy speed: 22.5 page per minute, A4.

Resolution

1200 x 1200 dpi (print), 600 x 600 dpi (scan/copy)

Dimensions (W x D x H)

475 x 476 x 575 mm (Value without projections), 475 x 476 x 575 mm (Value with projections)

Warranty

2-year warranty as standard. Kyocera guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • man leaning back in his chair

    Multi-Functional Products for day-to-day tasks

    Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

    Multi-Functional Products for day-to-day tasks
    Multi-Functional Products for day-to-day tasks

    Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

  • woman smiling in meeting

    A4 printer for all needs

    KYOCERA’s A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

    A4 printer for all needs
    A4 printer for all needs

    High quality, high reliability and high efficiency are essential.

  • hands holding a plant in soil

    ECOSYS: The sustainable solution

    ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

    ECOSYS: The sustainable solution
    ECOSYS: The sustainable solution

    Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

  • ECOSYS MA4500ix drivers
  • ECOSYS MA4500ix documentation
  • ECOSYS MA4500ix software

Main Specifications

General
  • General
  • Paper handling
  • Print
  • Copy
  • Scan
square-540x540.ECOSYS-MA4500ix
General type
Black and white Multifunctional for A4 format
Engine speed
Up to 45 pages A4 per minute. Duplex print speed: 22.5 page per minute, A4. Duplex copy speed: 22.5 page per minute, A4.
Warm-up time
Approx. 23 seconds or less
Power consumption
Printing: 599.4 W, Copying: 591.9 W, Ready mode: 57.2 W, Low power mode: 35 W, Sleep mode: 0.5 W
Warranty
2-year warranty as standard. Kyocera guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
Input capacity
Multi-purpose tray: 100 sheets, 60 to 220 g/m², A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 140 to 216 x 356 mm), Banner paper up to 915 mm. Standard universal paper cassette: 500 sheet, 60–120 g/m², A4, A5, B5, Letter, Legal, Folio, Custom (140 x 210 to 216 x 356 mm).

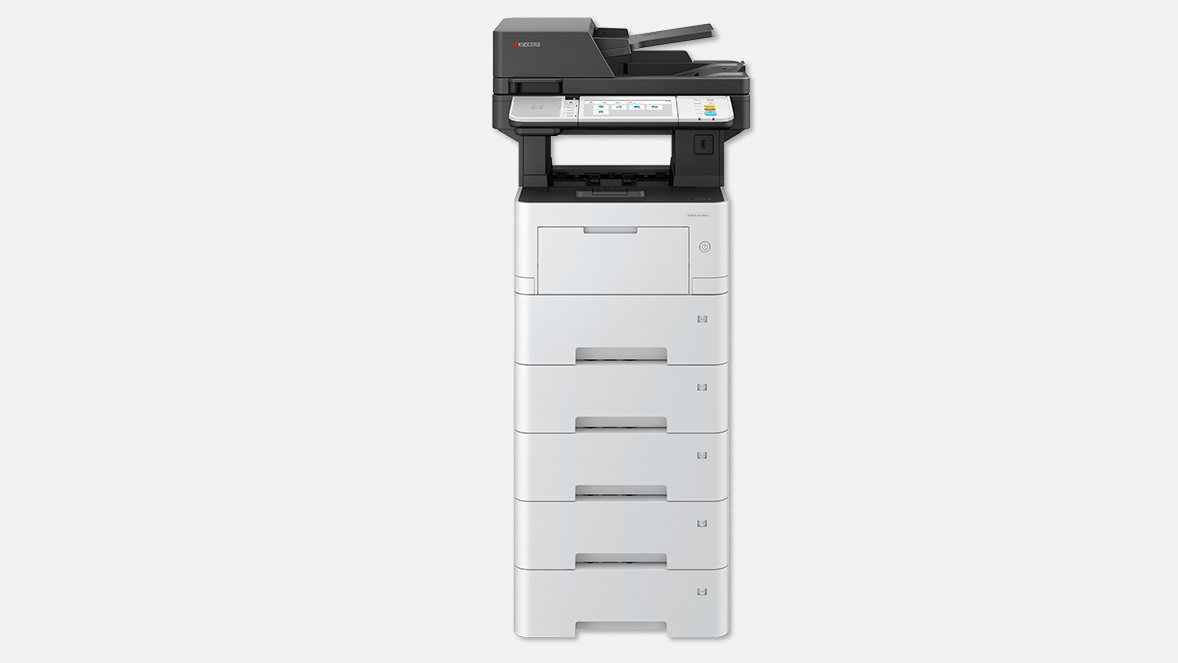

Max. input capacity with options
2,600 sheets
Duplex unit
Standard duplex unit, 60 to 120 g/m², A4, A5, B5, Letter, Legal, Custom (140x 210 mm - 216 x 356 mm).
Max. output capacity
250-sheet-face-down with paper full sensor
Document processor
Reverse Auto Document Processor as standard, 75 sheets, 50–120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm).
Processor
ARM Cortex-A53 Dual core 1.4GHz
Fonts
93 outline fonts (PCL6, KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Features
PDF Direct Print, Internet printing IPP 1.0, E-mail printing, WSD print, secure printing IPP over TLS, Local and network authentication, Network data encryption IPsec, HTTPS, LDAP over TLS, SNMPv3, SMTP over TLS, POP over TLS, Encrypted PDF Direct Print, TLS 1.3, Secure Boot, Run-time Integrity Check, Microsoft Universal Print, Printing for Chrome OS
Applicable OS
All current Windows operating systems, MAC OS X Version 10.9 or higher, Chrome OS, Linux, as well as other operating systems on request
Max. original size
A4 / Legal
Continuous copy
1 - 999
Zoom range
25 - 400 % in 1% steps
Preset magnification ratios
7 Reductions/5 Enlargements
Image adjustments
Text + Photo, Photo, Text, Chart/Map, Printed document
Digital copy features
Electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page, Skip Line, DP Auto-cropping
Scan functionalities
Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Network TWAIN , WIA , WSD scan, Chrome OS (Scan), AirPrint, Mopria
Scan speed
Simplex: 60 ipm (300 dpi, A4, b/w), 40 ipm (300 dpi, A4, colour). Duplex: 26 ipm (300 dpi, A4, b/w), 17 ipm (300 dpi, A4, colour).
Scan features
Banner Scan, Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
Scan resolution
600, 400, 300, 200 dpi, 256 greyscales per colour
Max. scan size
A4 / Legal
File type
TIFF, JPEG, XPS, Open XPS, PDF, PDF/A, PDF/A-1a/b, PDF/A-2a/b/u, Encrypted PDF, High compression PDF, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required)
Original recognition
Text, photo, text + photo, light text, optimised for OCR

Options and Consumables

Paper handling Options
  • Paper handling Options
  • Options

CA-3100
Caster stand

Card Authentication Kit (B)
Support for various authentication keys available

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

Scan extension Kit (A) AC
Scan to searchable PDF, Optional SD card or HD-6/7 is required to store an OCR dictionary (embedded OCR) or to MS Office (docx, xlsx, pptx)

UG-33
ThinPrint support

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available

Our environmental policy

The environment matters to Kyocera. We want to make the world a better place for the next generation.

Related products

Kyocera solutions to resolve all business needs.

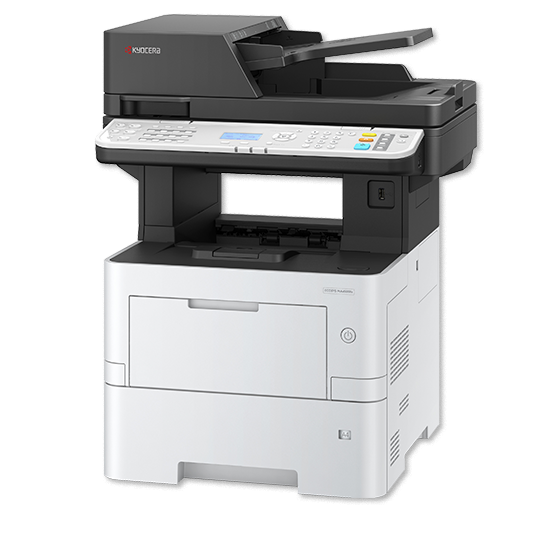

  • ECOSYS MA4500ifx

    Meets the high demands of users on productivity whilst also delivering exceptionally low running costs.

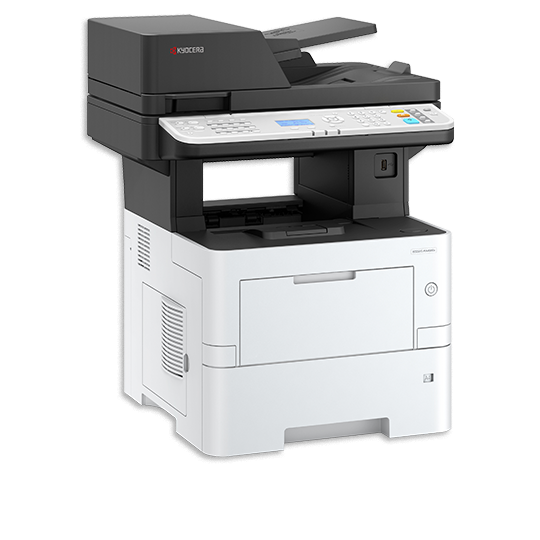

  • ECOSYS MA4500x

    Perfect blend of output quality, priceless reliability, and data security.

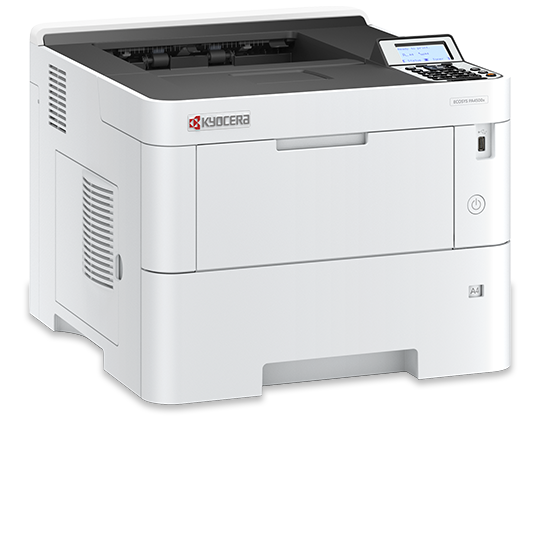

  • ECOSYS PA4500x
