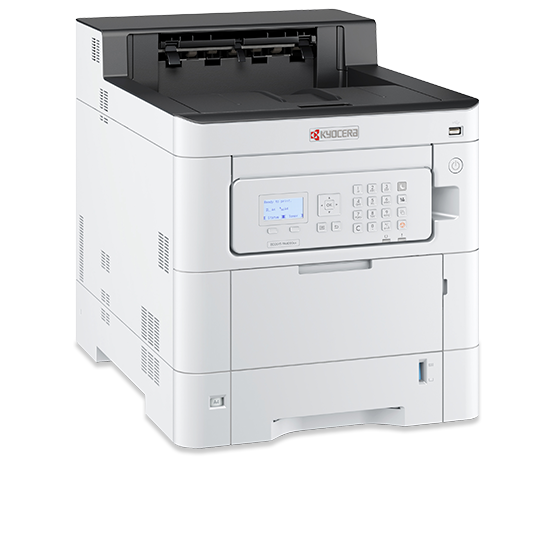

square-540x540-PA4000cx

ECOSYS PA4000cx

This A4 colour device is designed specifically for medium and large-sized work groups, offering both reliability and fast 40 ppm output.

  • Double-sided print.
  • Long-life components for superb efficiency and reliability.
  • Compact design with full functionality.
  • Wi-Fi Direct functionality for easy user connection (option).
Engine speed
Engine speed

Up to 40 pages A4 per minute, Duplex print speed: 32 page per minute, A4

Resolution
Resolution

1,200 x 1,200 dpi (at reduced print speed), 600 x 600 dpi, MultiBit technology for print quality up to 9,600 x 600 dpi

Dimensions (W x D x H)
Dimensions (W x D x H)

394 × 531.5 × 455 mm

Warranty
Warranty

2-year warranty as standard.** KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • ECOSYS PA4000cx drivers
  • ECOSYS PA4000cx documentation
  • ECOSYS PA4000cx software

Main Specifications

General
  • General
  • Paper handling
  • Print

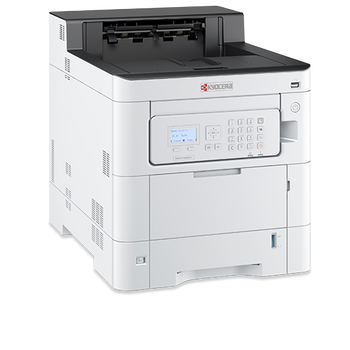

square-540x540-PA4000cx
General type
Colour printer for A4 format
Engine speed
Up to 40 pages A4 per minute, Duplex print speed: 32 page per minute, A4
Warm-up time
Approx. 25 seconds or less from power on
Power consumption
Printing: 523 W, Ready mode: 74 W, Sleep mode: 0.6 W
Warranty
2-year warranty as standard.** KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
Input capacity
Max. 100-sheet multi-purpose tray, 60–220 g/m², A4, A5, A6, B5,B6, letter, legal, folio, custom (70 x 148 to 216 x 356 mm); max. 500-sheet universal paper cassette, 60–220 g/m², A4, A5, A6, B5, B6, letter, legal, folio, custom (105 x 148 to 216 x 356 mm)
Max. input capacity with options
2,510 sheets
Duplex unit
Standard duplex unit: 60–163 g/m² (A4, A5, B5, Letter, Legal)
Max. output capacity
500-sheet face-down with paper full sensor
Processor
ARM Cortex-A9 D.core 1,2GHz + ARMCortex-M3 100MHz
Fonts
93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts (Windows Vista), 1 Bitmap font, 45 types of onedimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality
Applicable OS
All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request

Options and Consumables

Options
  • Options

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

MD3-1024
1,024 MB RAM Expansion

MDDR3-2GB
2,048 MB RAM Expansion

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

UG-33
ThinPrint support

UG-35
TPM (Trusted Platform Module)

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available

Our environmental policy

The environment matters to Kyocera. We want to make the world a better place for the next generation.
Read more Read more

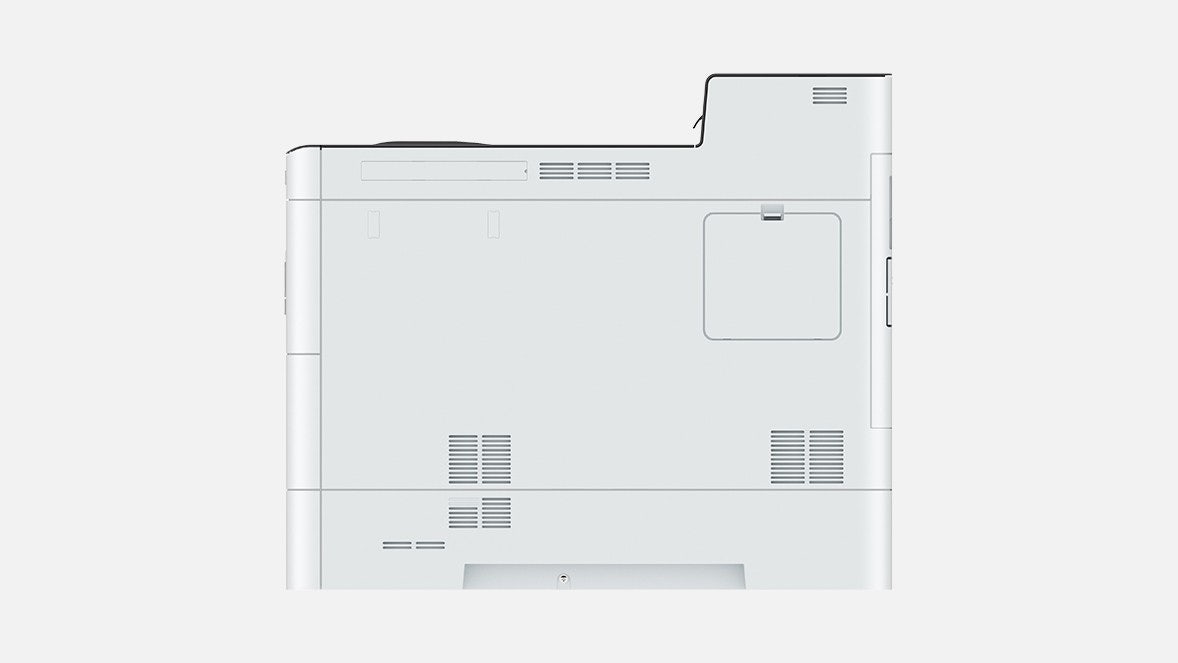

  • media-image-large-1178x663-PA4500CX-2

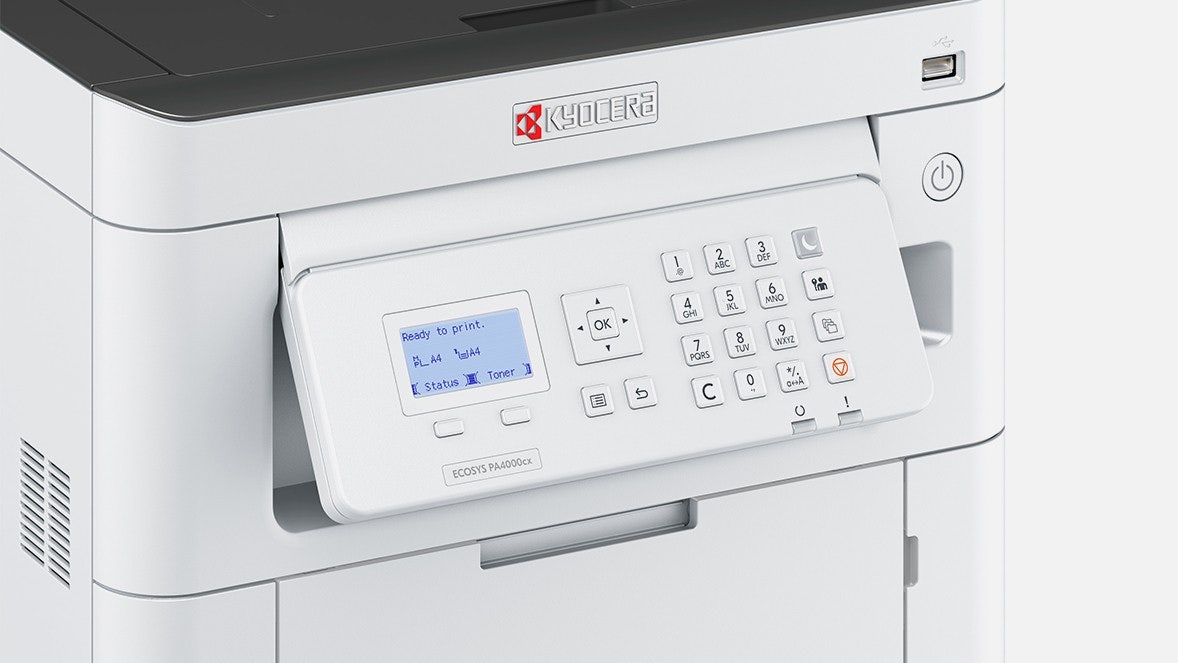

  • media-image-large-1178x663-PA4500CX-3

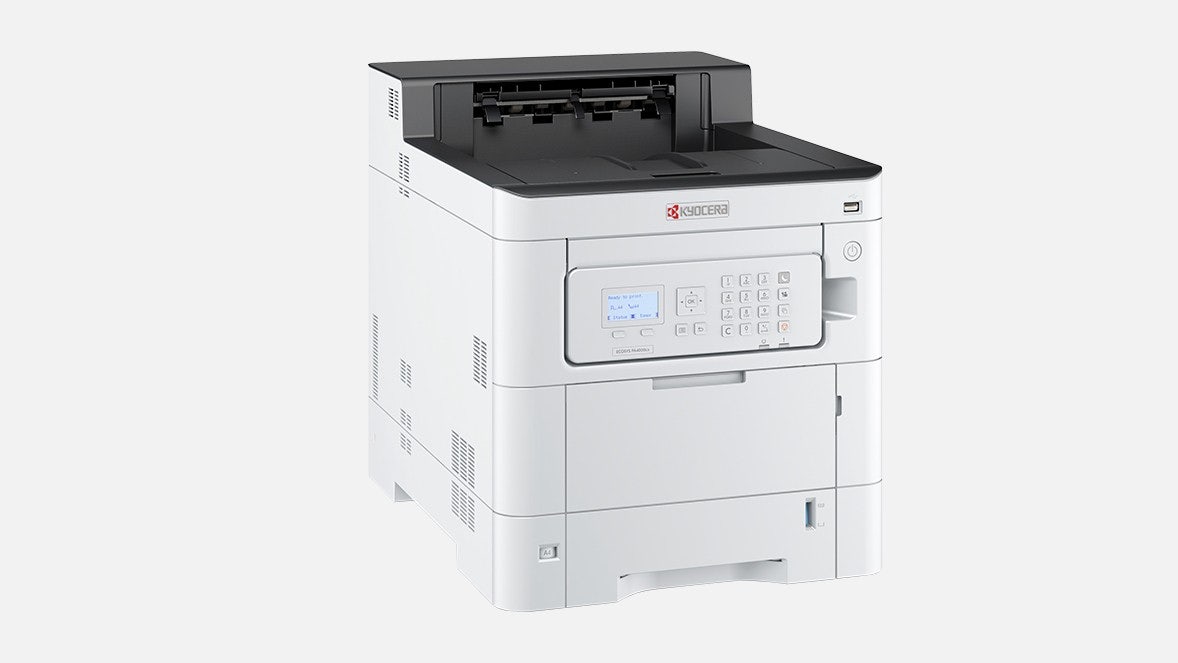

  • media-image-large-1178x663-PA4500CX-4

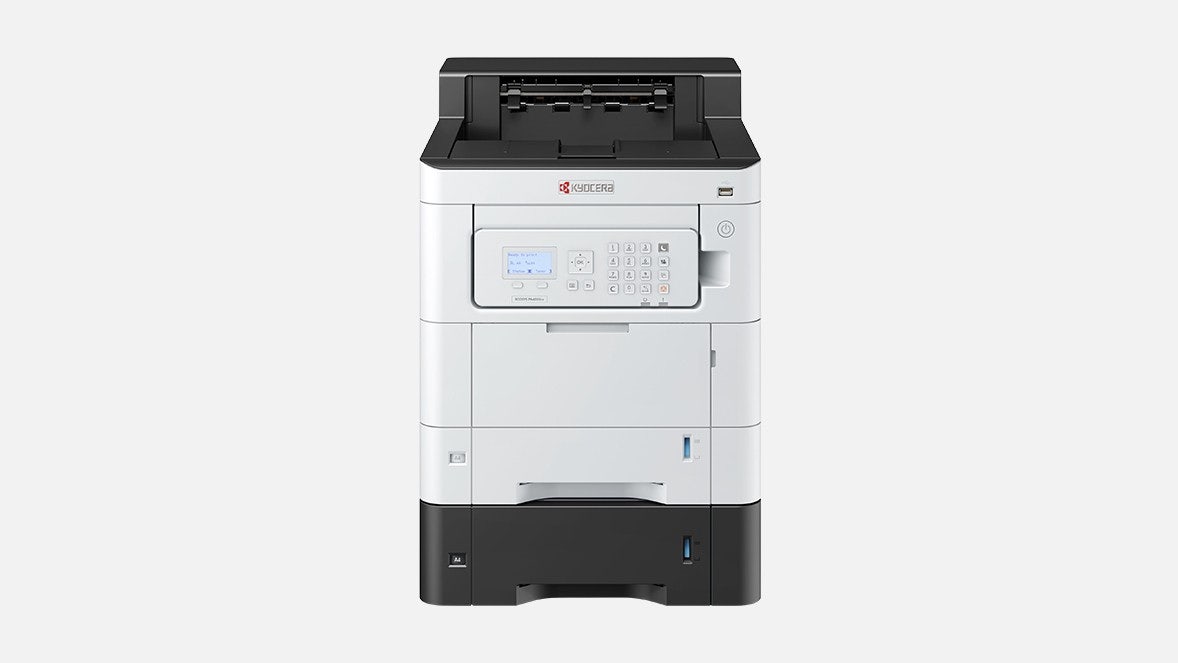

  • media-image-large-1178x663-PA4500CX-5

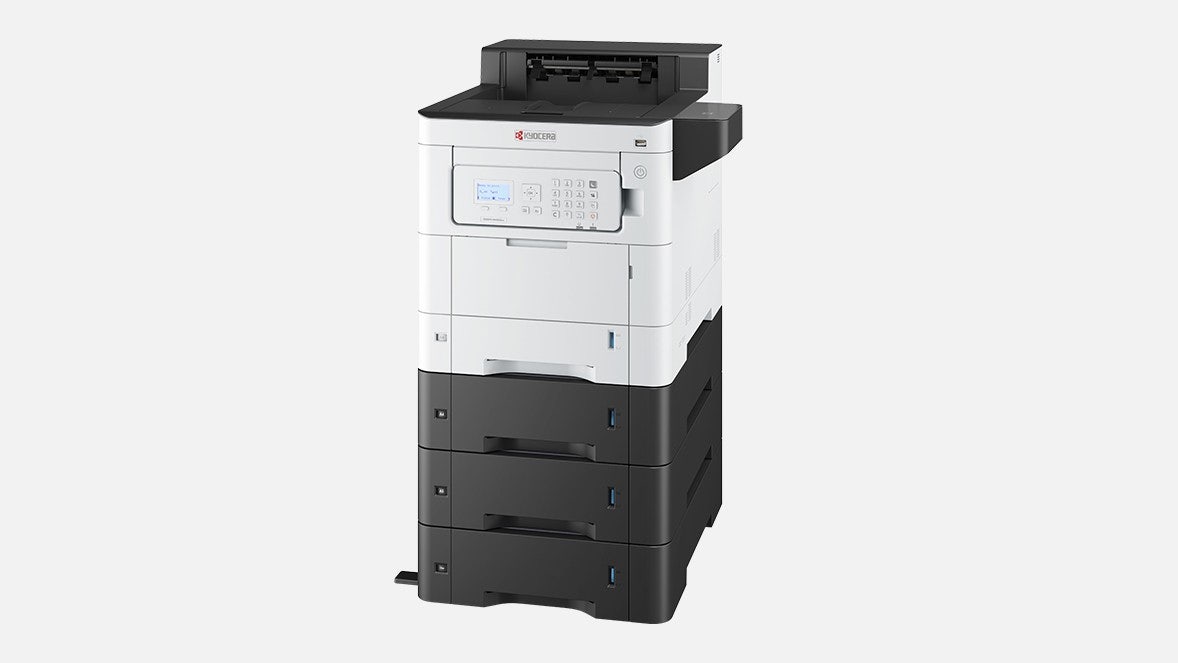

  • media-image-large-1178x663-PA4500CX-6

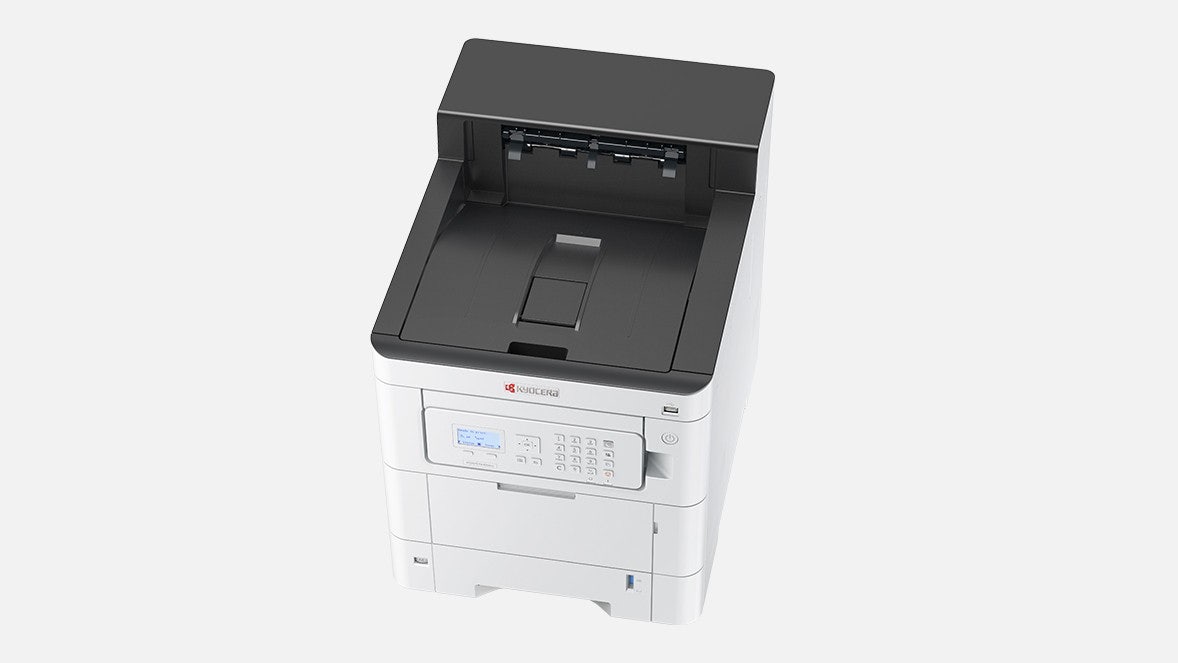

  • media-image-large-1178x663-PA4500CX-1
