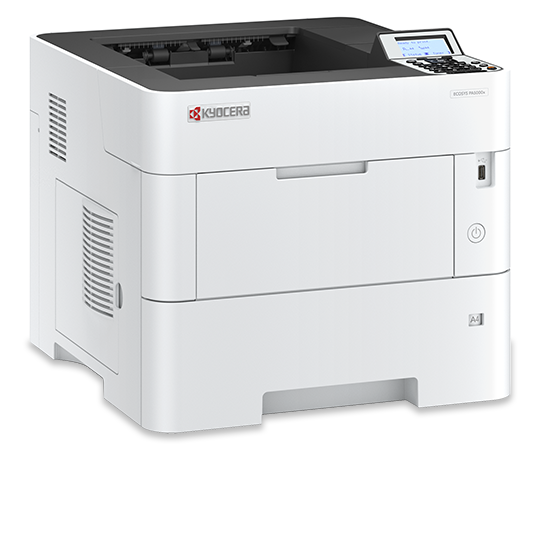

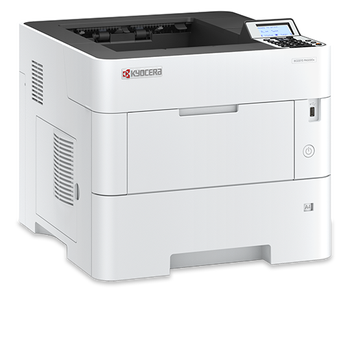

square-540x540.ECOSYS-PA5000x

ECOSYS PA5000x

Top performance of ECOSYS PA5000x and embedded the data protection solutions meet the needs of every small and mid-sized workgroups. Up to 50 pages per minute in excellent 1,200 dpi resolution and fast time to first print of only 5.4 seconds boast productivity, while ECOSYS technology contributes to cost savings.

  • Data overwrite and encryption, Trusted Platform Module, Secure Boot and Run Time Integrity Check, S/MIME and TLS 1.3
  • Up to 6 different paper inputs max. 2,600 sheet capacity
  • Strenghen affinity with Microsoft Universal Print
  • Optional SSD hard disk with Data Security Kit
  • Environmentally friendly: long-life components, low energy consumption
Engine speed
Engine speed

Up to 50 pages A4 per minute. Duplex print speed: up to 35.5page per minute in A4.

Resolution
Resolution

1200 x 1200 dpi

Dimensions (W x D x H)
Dimensions (W x D x H)

(WxDxH) 380 mm × 416 mm × 320 mm, 390 mm × 416 mm × 343 mm incl. projections

Warranty
Warranty

2-year warranty as standard **KYOCERA guarantees the drum and developer for 3 years or 500,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions. Up to 3-year on-site warranty extensions available for product and options.

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • ECOSYS PA5000x drivers
  • ECOSYS PA5000x documentation
  • ECOSYS PA5000x software

Main Specifications

General
  • General
  • Paper handling
  • Print
square-540x540.ECOSYS-PA5000x
General type
Monochrome printer for A4 format
Engine speed
Up to 50 pages A4 per minute. Duplex print speed: up to 35.5page per minute in A4.
Warm-up time
Approx. 20 seconds or less from power on
Power consumption
Print - mode: 652 W, Sleep mode: 0.5 W, Ready - mode: 9 W
Warranty
2-year warranty as standard **KYOCERA guarantees the drum and developer for 3 years or 500,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions. Up to 3-year on-site warranty extensions available for product and options.
Input capacity
100-sheet multi-purpose tray: MP tray: 60 - 220g/m2, A4, A5, A6, B5, Letter, Legal, Custom (70 x 148 - 216 x 356 mm), Banner paper up to 915 mm 500-sheet universal paper cassette: 60 - 120g/m2, A4, A5, B5, Letter, Legal, Custom (140 x 210 - 216 x 356 mm)
Max. input capacity with options
2,600 sheets
Duplex unit
Duplex functionality as standard: Double sided printing: A4, A5, B5, Letter, Legal, Custom (140 x 210 mm - 216 x 356 mm), 60 - 120g/m2
Max. output capacity
500-sheet-face-down with paper full sensor and optional 250-sheet-face-up with PT-320
Processor
ARM Cortex-A53 Dual core 1.4GHz
Fonts
93 scalable fonts for PCL6/KPDL3, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)
Features
PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Encrypted PDF Direct Print
Applicable OS
All current Windows operating systems, Mac OS X Version 10.9 or higher, UNIX LINUX, as well as other operating systems on request

Options and Consumables

Paper handling Options
  • Paper handling Options
  • Options

CA-3100
Caster stand

Card Authentication Kit (B)
Support for various authentication keys available

IB-32B
Parallel IEEE1284 interface kit

IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

IB-51
Wireless LAN Interface (802.11b/g/n)

KYOmulticode SD 3
Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

UG-33
ThinPrint support

USB IC Card Reader + Card Authentication Kit (B)
Support for various authentication keys available

Our environmental policy

The environment matters to Kyocera. We want to make the world a better place for the next generation.
Read more Read more

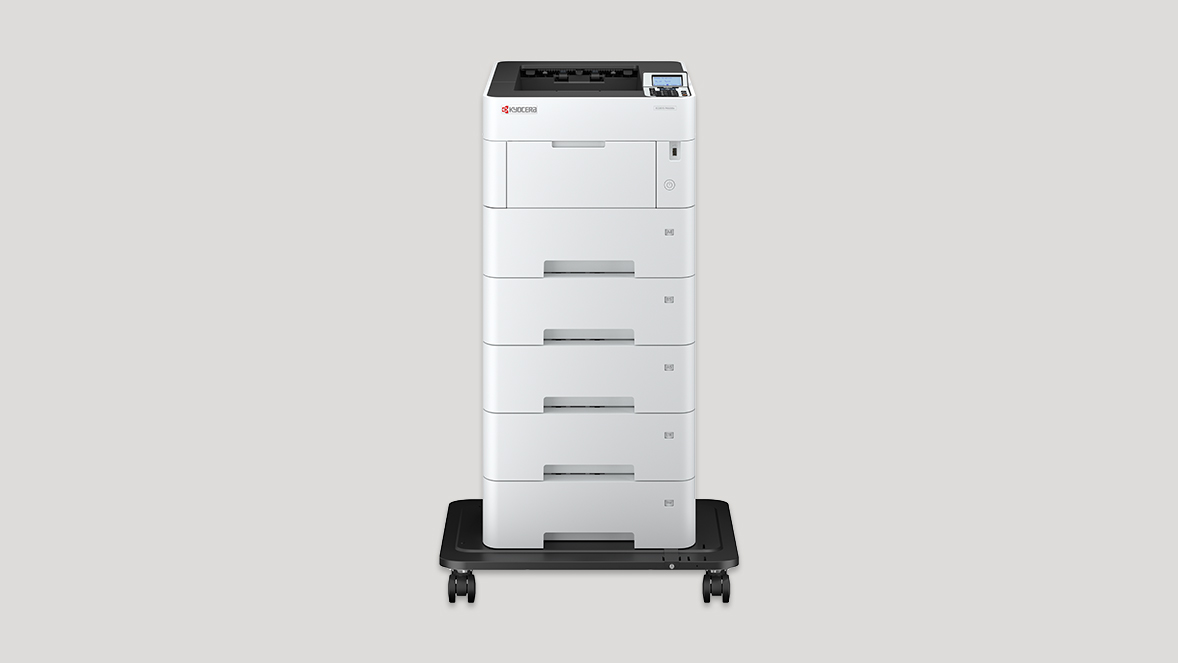

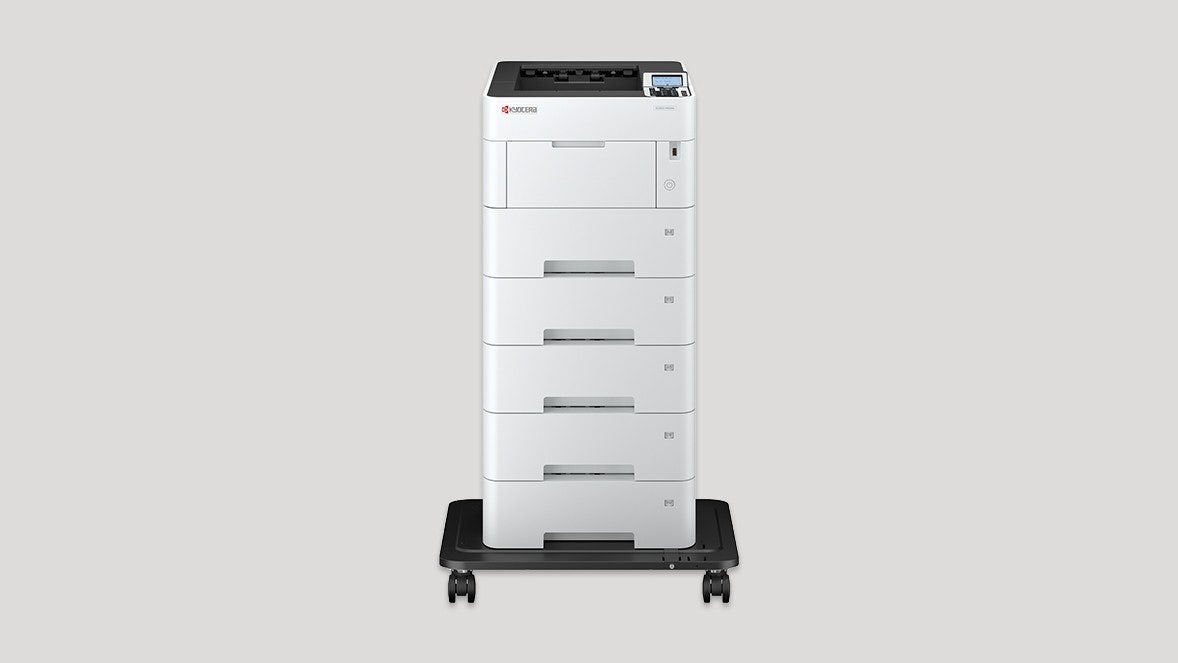

  • media-image-gallery-1178x663_MFP_PA5000x_front_comb03_01

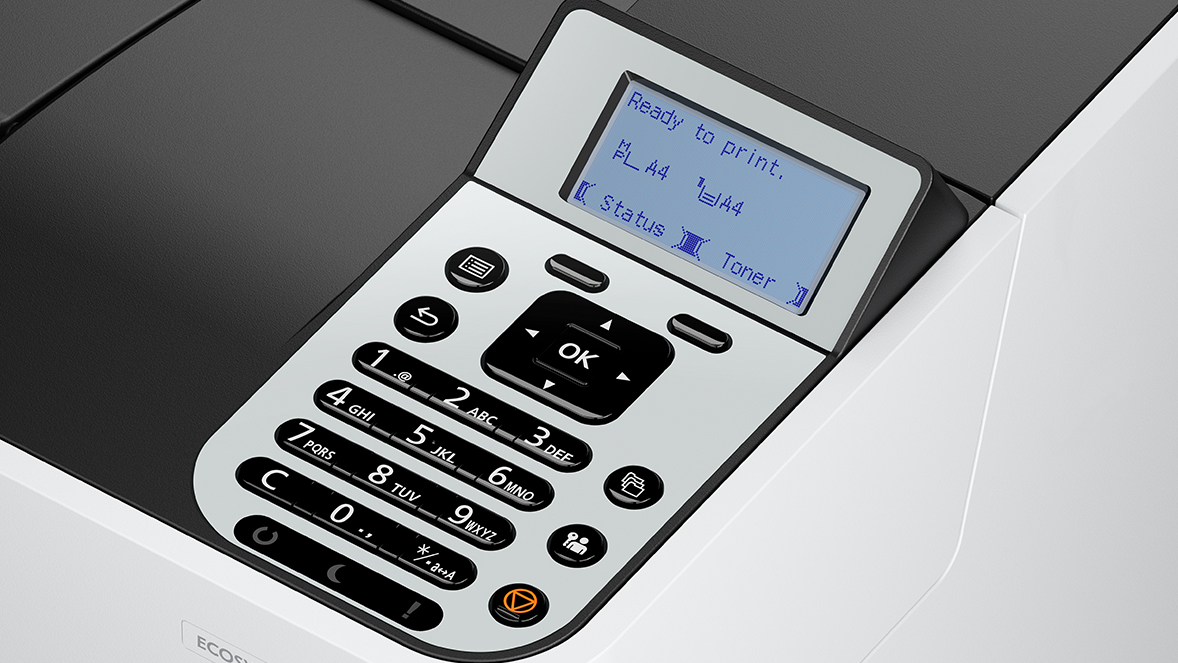

  • media-image-gallery-1178x663_MFP_PA5000x-Series_panel_close-up_01

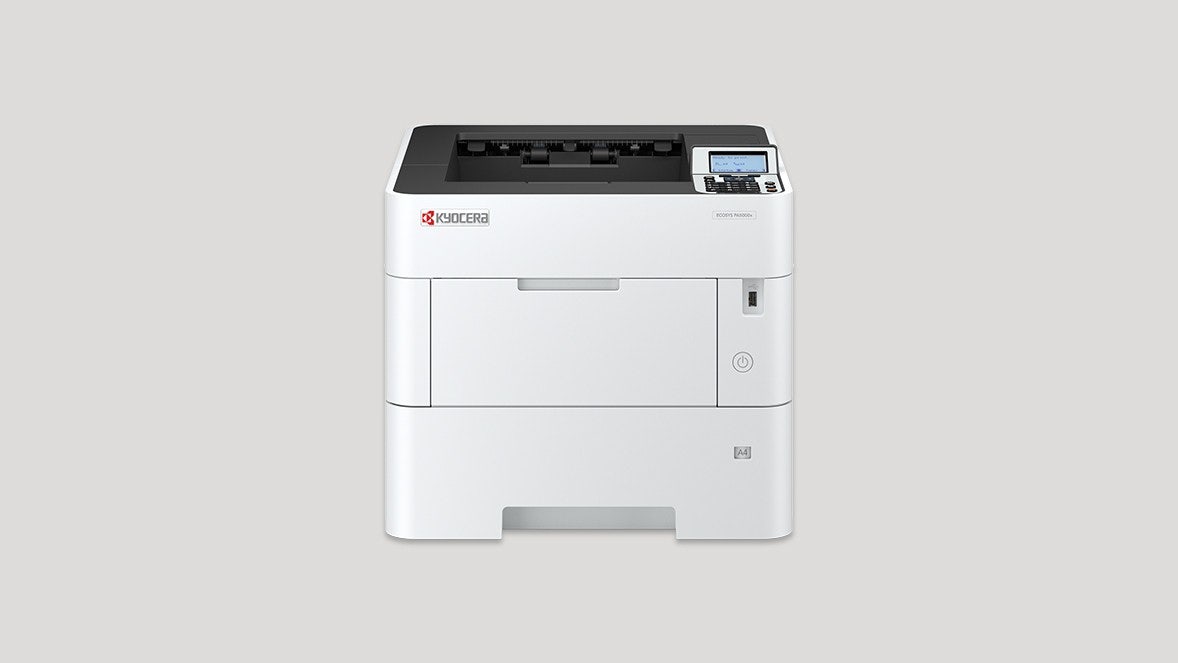

  • media-image-gallery-1178x663_MFP_PA5000x_front_comb01_01
