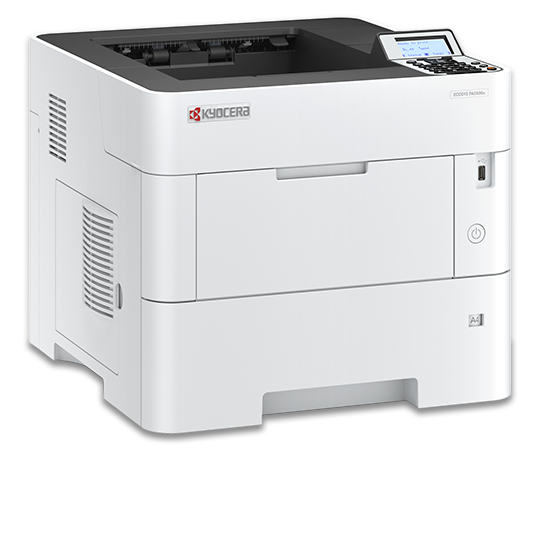

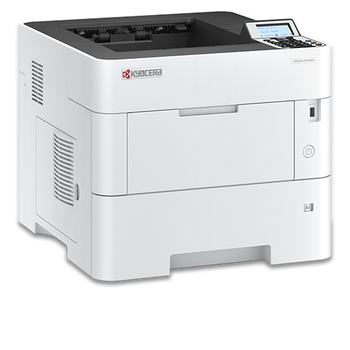

      square-540x540.ECOSYS-PA5500x

      ECOSYS PA5500x

      The flexible paper handling options with up to 2,600 sheets and modern security features, combined with long-life components provides exceptional efficiency and reliability, making the ECOSYS PA5500x the ideal choice to increase overall performance of workgroups. With a print speed of up 55 pages per minute and a fast first print out, it's always ready when you need it.
      • Data overwrite and encryption, Trusted Platform Module, Secure Boot and Run Time Integrity Check, S/MIME and TLS 1.3
      • Up to 6 different paper inputs max. 2,600 sheet capacity
      • Strenghen affinity with Microsoft Universal Print
      • Optional SSD hard disk with Data Security Kit
      • Environmentally friendly: long-life components, low energy consumption

      ECOSYS makes your office more sustainable and efficient

      Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.
      • ECOSYS PA5500x Drivers
      • ECOSYS PA5500x Documentation
      • ECOSYS PA5500x Software

      Main Specifications

      General
      • General
      • Paper handling
      • Print
      square-540x540.ECOSYS-PA5500x
      General type
      Monochrome printer for A4 format
      Engine speed
      Up to 55 pages A4 per minute. Duplex print speed: up to 39 page per minute in A4.
      Warm-up time
      Approx. 25 seconds or less from power on
      Power consumption

      Print - mode: 676.1 W, Sleep mode: 0.5 W, Ready - mode: 9 W

      Warranty
      2-year warranty as standard **KYOCERA guarantees the drum and developer for 3 years or 500,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions. Up to 3-year on-site warranty extensions available for product and options.
      Input capacity

      100-sheet multi-purpose tray: MP tray: 60 - 220g/m2, A4, A5, A6, B5, Letter, Legal, Custom (70 x 148 - 216 x 356 mm), Banner paper up to 915 mm 500-sheet universal paper cassette: : 60 - 120g/m2, A4, A5, B5, Letter, Legal, Custom (140 x 210 - 216 x 356 mm)

      Max. input capacity with options

      2,600 sheets

      Duplex unit

      Duplex functionality as standard: Double sided printing: A4, A5, B5, Letter, Legal, Custom (140 x 210 mm - 216 x 356 mm), 60 - 120g/m2

      Max. output capacity

      500-sheet-face-down with paper full sensor and optional 250-sheet-face-up with PT-320

      Processor
      ARM Cortex-A53 Dual core 1.4GHz
      Fonts

      93 scalable fonts for PCL6/KPDL3, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)

      Features

      PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Encrypted PDF Direct Print

      Applicable OS

      All current Windows operating systems, Mac OS X Version 10.9 or higher, UNIX LINUX, as well as other operating systems on request

      Options and Consumables

      Paper handling Options
      • Paper handling Options
      • Options
      CA-3100

      Caster stand
      Card Authentication Kit (B)

      Enables the use of the ID card user authentication system
      IB-32 B

      Parallel IEEE1284 interface kit
      IB-50

      Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT
      IB51

      Wi-Fi Card (802.11b/g/n)
      KYOmulticode SD 3

      Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)
      PCL Barcode Flash 3.0 Type D/E

      Expands the system with additional one- and two-dimensional barcodes. It also includes additional resident and machine-readable fonts (OCR-A, OCR-B).
      UG-33

      ThinPrint Kit: enables printing under ThinPrint
      USB_IC_CARDREADER

      Simplifies authentication on the system

      Our environmental policy

      The environment matters to Kyocera. We want to make the world a better place for the next generation.

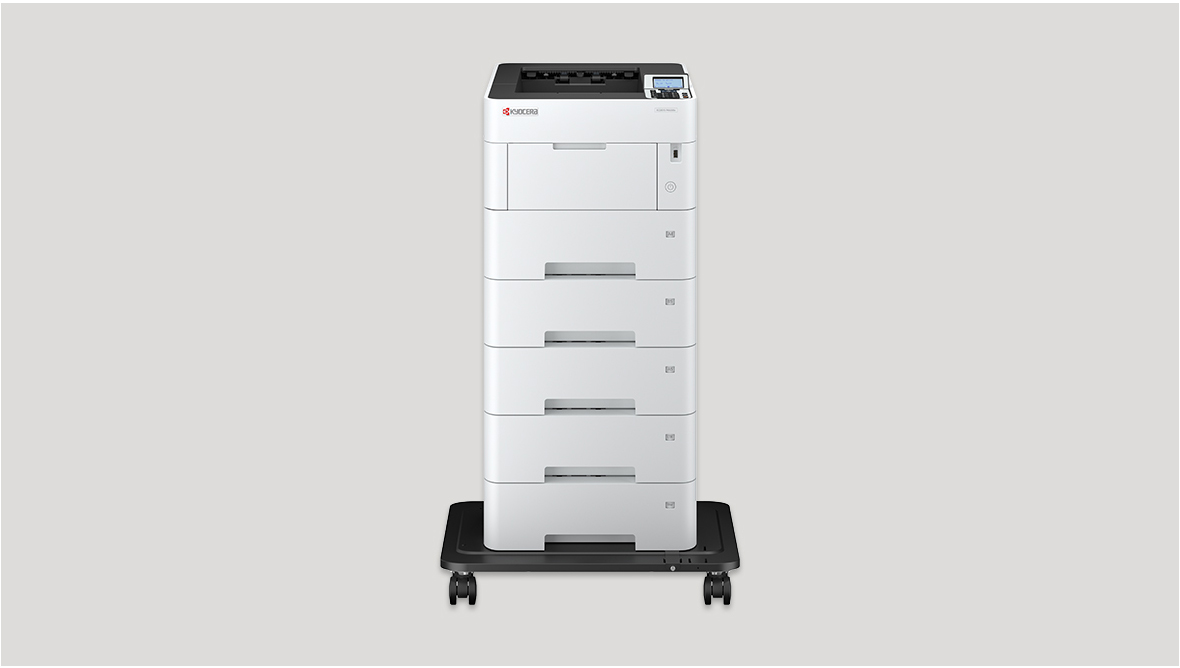

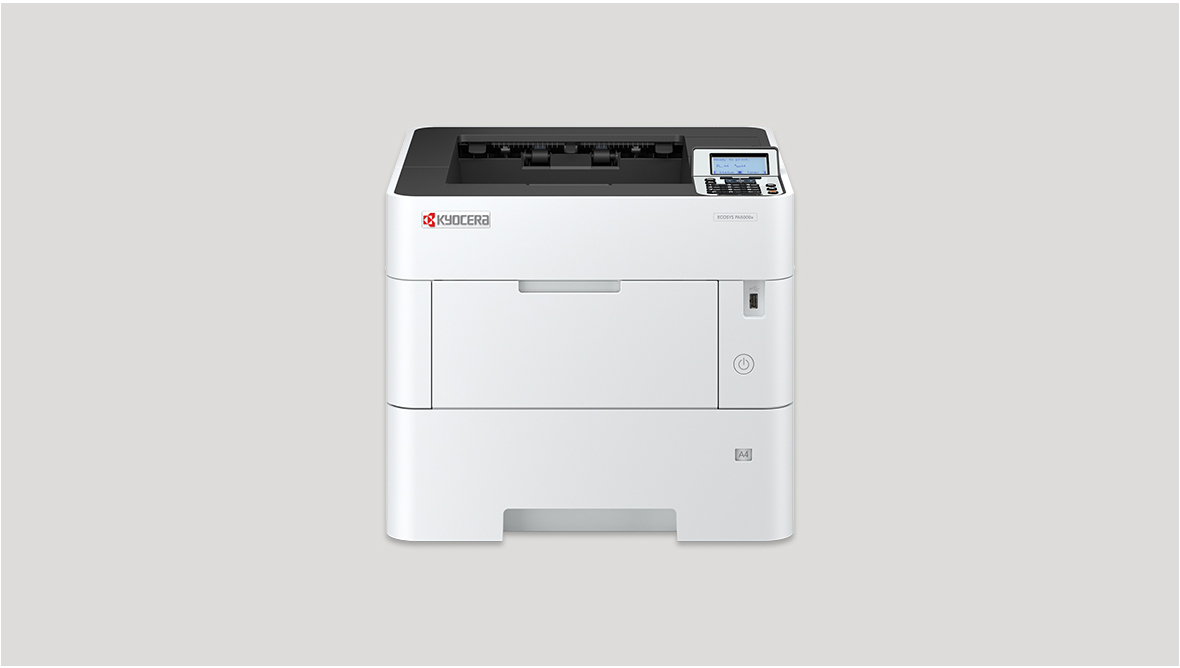

      • media-image-gallery-1180x668_MFP_PA5000x_front_comb01_01
      • media-image-gallery-1180x668_MFP_PA5000x_front_comb03_01

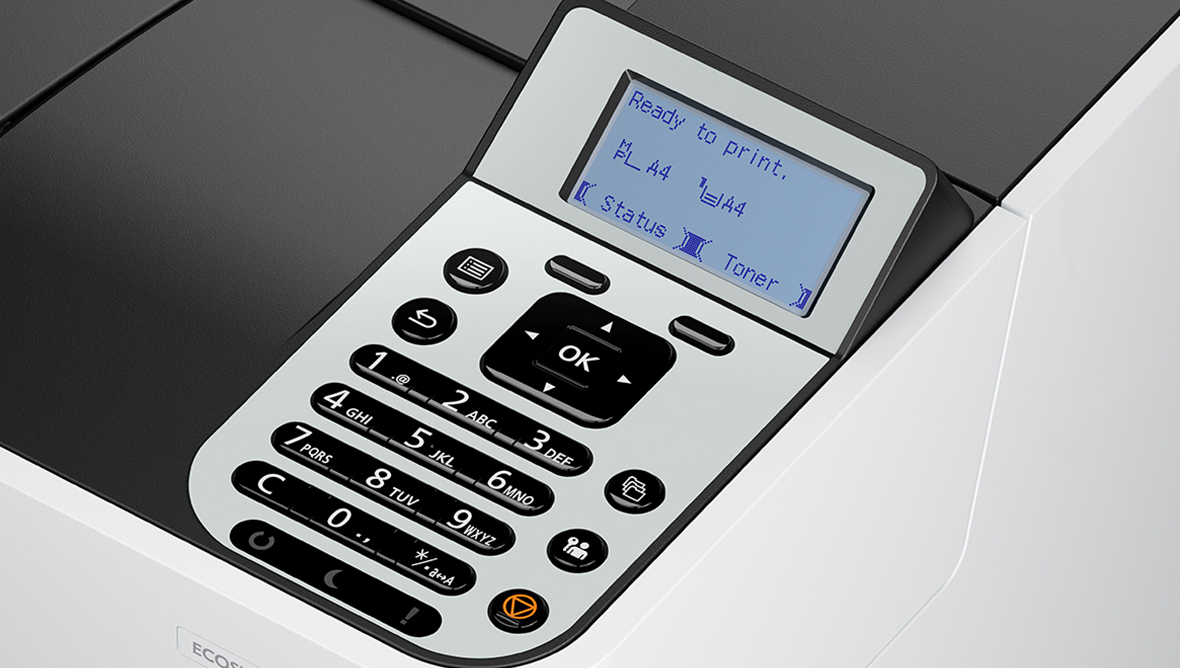

      • media-image-gallery-1180x668_MFP_PA5000x-Series_panel_close-up_01
